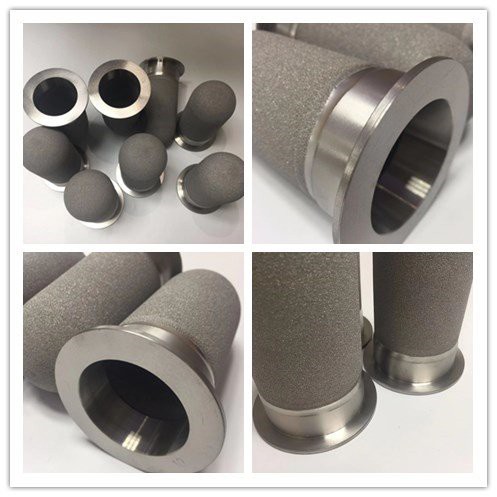

10μm Titanium Filter Flange Interface is a type of filter that is made from titanium and has a pore size of 10 micrometers (10um). The filter is designed to remove particles and impurities from fluids, such as water or air, that are larger than the pore size of the filter.

10μm Titanium Filter Flange Interface is preferred in certain applications due to its high strength, corrosion resistance, and compatibility with a wide range of chemicals and temperatures. The 10um pore size is suitable for filtering out larger particles and impurities, such as sand, sediment, rust, and other debris that can cause clogging or damage to downstream equipment.

10μm titanium filter

sintered titanium filter element

flange interface filter

Some common applications for 10μm Titanium Filter Flange Interface include water and wastewater treatment, chemical processing, pharmaceutical manufacturing, and food and beverage production. They can be used as standalone filters or as part of a larger filtration system, depending on the specific requirements of the application.

Overall, 10μm Titanium Filter Flange Interface offers high efficiency and durability, making them a reliable choice for various industrial and commercial filtration applications.

Parameter

Brand: TopTiTech

Origin: Baoji, China

Filtration precision: 0.22～100μm

Diameter: 10～80mm

Length: 100～1000mm (particular specifications can be customized)

Interface types

Product Features

1. This material has different pore sizes and filtration accuracy (0.2μm - 100μm), channel crisscross, filtration separation efficiency is high;

2. High-temperature resistance, resistance to cold and heat. It is suitable for use in the temperature range of -200 -- 1000℃;

3. Corrosion resistance, suited for the deep separation and fine filtration of a variety of acids, alkalis, and other corrosive media;

4. Has certain metal or alloy characteristics. It can absorb energy, silence, heat resistance, shockproof, buffer, heat conduction, electric conductivity, high strength, and good toughness. Suitable for high-pressure applications. Can be welded and has simple mechanical processing, easy to load and unload.

5. Stable hole shape and uniform distribution ensure stable filtration performance. The regeneration performance is good, and the filtration performance can recover more than 90% after regeneration.

Product Details

How sintered metal tube works?

The sintered metal tube allows fluid to pass through in a linear fashion. However, the fluid entering from one end of the tube contains a significant amount of contaminants. As the fluid flows through the tube, a pressure drop occurs due to the low speed at which the fluid is passing through the small pores of the tube.

This prolonged passage of fluid through the tube causes larger contaminants to be left behind while the clean fluid passes through to the other end. To remove the contaminants from the tube, the backwash method can be employed. This involves forcing the contaminants out of the tube through the point of entry. The clean fluid exits the sintered metal tube at the opposite end.

Overall, the sintered metal tube is an efficient solution for filtering fluids and removing contaminants. By applying backwash, the tube can be cleaned and maintained for optimal performance in various industrial and commercial applications.
