Sintered metal powder filter elements are advanced filter components that have undergone the meticulous process of sintering. This technique enhances their porosity, enabling their versatile use in applications ranging from liquid and gas filtration to gas/liquid flow regulation and ventilation tasks.

Distinguished from alternative filter materials like glass fiber, stainless steel wire mesh, ceramics, and filter paper, sintered metal filters exhibit superior mechanical and compressive strength. Particularly in environments with sustained high temperatures and corrosive conditions, sintered metal filter elements excel in refining the filtration process while curbing operational expenses.

Products Specifications

Material	Grade 1 Titanium Powder
Filtration grade/Pore size	10 Micron
Diameter	20mm
Length	200mm
Connector	Quick-Release Connector
Temperature Resistance	Up to 300°C

Products Features

Reusability and adaptability

Exceptional filtering efficiency

High tolerance to thermal shock

Extended service life (cleanable and reusable)

Resilient to high pressure and temperature

Sturdy and fracture-resistant

Corrosion-resistant

Exceptional thermal shock resistance

Offers a range of geometric possibilities

Maintains fine tolerance to preserve physical properties

applications

Removal of dust, bacteria, and oil fog from gas and steam

Noise reduction and gas buffering

Catalyst recycling

Decarburization filtration

Filtration of viscous liquids

Filtration of strong polar solvents

Particle retention in off-gas from fluidized beds

Filtration and separation in pharmaceutical, beverage, food, metallurgy, petroleum, and other industries

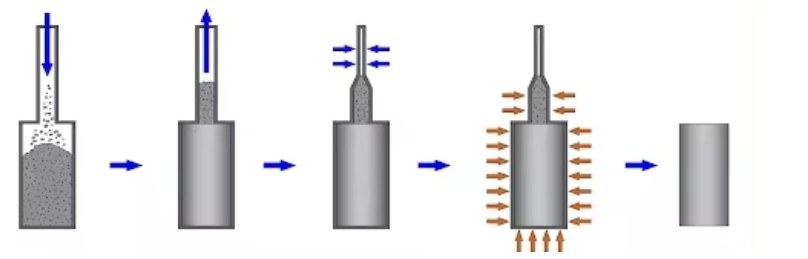

Manufacturing Process of Sintered Metal Filters

20240727144401

The production of sintered metal filters involves pressing metal powder into a customized mold with precise pressure to ensure particle adhesion at contact points. The 'green' strength of the part pre-sintering is contingent upon various factors of the metal powder like particle size, composition, and shape. Following molding, the 'green' part undergoes controlled heating or sintering at a temperature below the metal's melting point, allowing for controlled shrinkage. The sintering process transforms the original powder particles into a fully interconnected porous metal structure, dictating the filtration medium's micron class. Moreover, the porosity of the sintered medium is a defining characteristic, tailored to the specific demands of individual systems.
