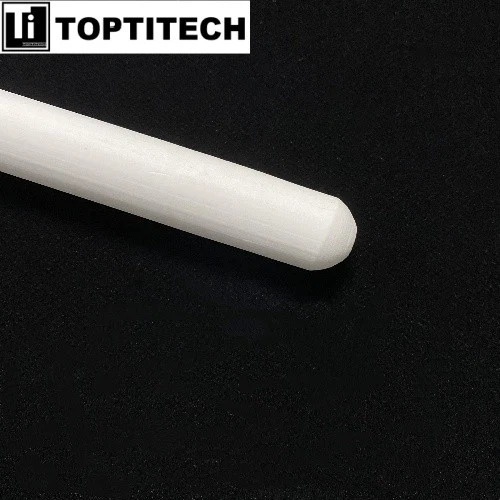

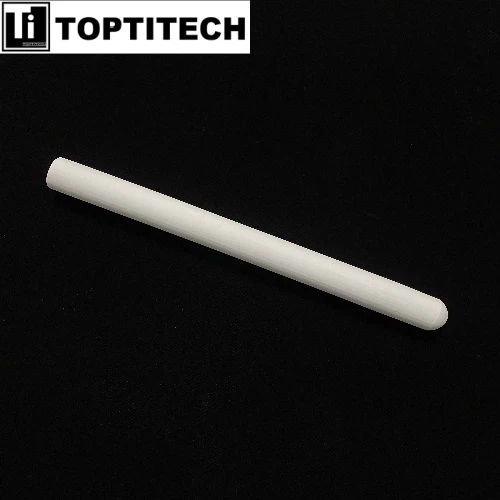

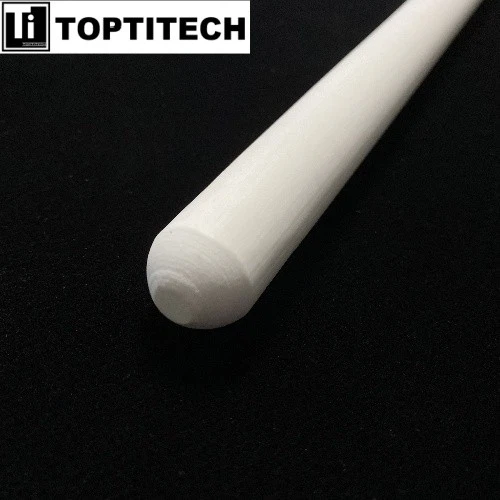

PTFE Sintered Filter for Corrosive Chemical Filtration

PTFE Sintered Filter for Corrosive Chemical Filtration from TOPTITECH uses polytetrafluoroethylene (PTFE) as raw material and is precisely manufactured through high-temperature sintering process. The filter element is integrally formed with a seamless structure, which ensures the overall mechanical strength and sealing, and effectively avoids the leakage problem that may occur in traditional filter elements. The sintering process ensures the uniform distribution and stability of the filter element pores, thereby achieving excellent filtration performance and a long service life. The pore size of the filter element is precisely controlled at 1-2μm, which is suitable for high-demand precision filtration tasks.

PTFE material has natural non-adhesiveness, and the surface of the filter element is almost free from contaminants, which greatly reduces the frequency of cleaning and replacement and reduces maintenance costs. The sturdy structure of the filter element can withstand the working pressure in high-pressure and high-temperature environments, ensuring long-term stable operation. At the same time, the structural design after sintering makes the filter element have high pressure resistance and corrosion resistance, and can maintain its excellent performance even in harsh environments. The porosity of the filter element is optimized through a precise sintering process, providing high filtration efficiency, which is particularly suitable for high-purity filtration applications.

Products Specifications

Material	polytetrafluoroethylene (PTFE)
Filtration grade/Pore size	1-2um
Length	260mm
Outer diameter	20mm
Inner diameter	14mm
Technique	Si ntering

Products Features

Precision Filtration Performance

The Sintered Porous PTFE Filter achieves 1-2μm filtration accuracy through a precision sintering process that ensures uniform pore distribution. This guarantees excellent filtration of fine particles from gases or liquids, essential for high-purity applications.

Unmatched Chemical Inertness

PTFE is renowned for its superior chemical resistance. The filter can withstand highly concentrated acids (e.g., 98% H₂SO₄), alkalis (e.g., 40% NaOH), and a wide range of organic solvents like DMSO and acetone, ensuring reliable performance even in the harshest environments. It has been validated by ASTM D543 and ISO 175 for chemical compatibility.

Hydrophobic Surface for Reduced Fouling

Thanks to PTFE's non-adhesive properties, the filter's surface minimizes contamination and prevents fouling. This reduces clogging and extends service life, making it ideal for continuous filtration tasks.

Thermal Stability Under Extreme Conditions

The PTFE material maintains its integrity and filtration efficiency across a temperature range of -40°C to 260°C, making it suitable for both low and high-temperature operations. This filter can withstand steam sterilization (SIP) at 116°C without losing structural stability.

High Mechanical Strength and Pressure Resistance

After sintering, the PTFE filter demonstrates exceptional mechanical strength and pressure resistance. The filter can operate under pressures up to 6 bar at 25°C, ensuring stable filtration performance even in high-pressure environments.

Self-Sealing and Durable Construction

The filter's joint-free, monolithic design ensures that no fibers or particles are shed during operation, which is essential for high-purity and pharmaceutical applications. The sintering process also enhances the filter's structural stability, preventing potential leaks and ensuring long-lasting performance.

PTFE Sintered Filter for Corrosive Chemical Filtration

applications

Chemical Industry

PTFE sintered filters offer exceptional corrosion resistance to concentrated acids, alkalis, and organic solvents, ensuring reliable filtration in chemical production. They are especially effective in applications like catalyst recovery and high-purity chemical preparation, where corrosion resistance is crucial.

Pharmaceutical Industry

These filters meet 0.22μm sterilization standards, ensuring complete removal of microorganisms and particulates from pharmaceutical liquids. They are widely used in critical applications like injectable drug filtration, biopharmaceutical clarification, and sterile air preparation, fully complying with GMP requirements.

Electronics Industry

In semiconductor manufacturing, the filters guarantee the removal of particles larger than 0.1μm from ultrapure water, essential for processes such as wafer cleaning and photoresist filtration. They meet SEMI standards, preventing contamination and yield loss in sensitive manufacturing environments.

Food & Beverage Industry

Food-grade PTFE filters effectively eliminate impurities and microorganisms from beverages like alcohol, juices, and edible oils, while preserving the product's flavor and nutritional content. These filters comply with FDA food contact material regulations, ensuring safety in food processing.

Environmental Protection

PTFE filters excel in separating oil and fine particles in industrial wastewater treatment and capturing acid mist and dust in exhaust gas treatment. Their high chemical resistance makes them ideal for challenging environments such as chemical parks and electroplating facilities, improving overall environmental protection.

Laboratory Applications

With excellent solvent resistance, these filters are suitable for purifying strong solvents like DMSO, THF, and acetone. They meet stringent purity standards for research applications, ensuring the high-quality separation of reagents and nanomaterials in scientific experiments.

New Energy Sector

In the hydrogen energy sector, PTFE filters efficiently purify hydrogen gas for fuel cells, removing particles and oil mist to ensure the stable operation of fuel cell stacks. Their compact design is particularly suitable for vehicle hydrogen supply systems, ensuring consistent performance in demanding applications.

High-Temperature Processes

These filters are capable of withstanding steam sterilization temperatures up to 260°C, ensuring consistent performance in high-temperature environments. They are ideal for applications such as CIP/SIP systems in biopharma and high-temperature filtration in chemical processes, reducing filter replacement frequency and improving operational efficiency.
