Name: The Micron-scale Porous Metal Foamed Titanium Ring Customized Suppliers, Manufacturers - Free Sample - TOPTITECH Metal Materials
Brand: TOPTITECH
SKU: 186323496

The micron-scale porous metal foamed titanium ring has excellent properties such as corrosion resistance, high temperature resistance, high strength, easy to ensure filtration accuracy, and easy regeneration; The particles are not easy to fall off; the operating temperature in the air can reach 300 °C; it is suitable for filtration of various corrosive media, like weak hydrochloric acid, sulfuric acid, hydroxide, seawater, aqua regia, and chloride solutions like sodium, copper, and iron filters. It has excellent mechanical properties, and can be machined by cutting, welding, etc., with high compressive strength and internal pressure failure strength of up to 0.3MPa or more; It is simple to assure the accuracy of its filtering because the aperture won't deform even when it operates at high temperatures and pressures. The porosity can reach 35-45%, the pore size distribution is uniform, the dirt holding capacity is large, and the regeneration method is simple, and can be reused after regeneration.

The micron-scale porous metal foamed titanium ring material contains a large number of connected or semi-connected pores. The pore structure is formed by stacking regular and irregular powder particles. The size and distribution of the pores and the porosity can be combined and prepared according to the powder particle size. The process can be adjusted to meet the actual needs of customers.

Advantage

1. Easy to clean and reverse clean, long service life;

2. Porous, good air permeability;

3. Deep filtration;

4. Large dirt holding capacity;

5. Stable shape;

6. High mechanical strength;

7. High-temperature resistance;

8. Acid and alkali corrosion resistance;

9. Strong anti-oxidation;

10. Strong impact resistance and high alternating load;

11. Narrow pore size distribution, high separation efficiency and good filtration performance.

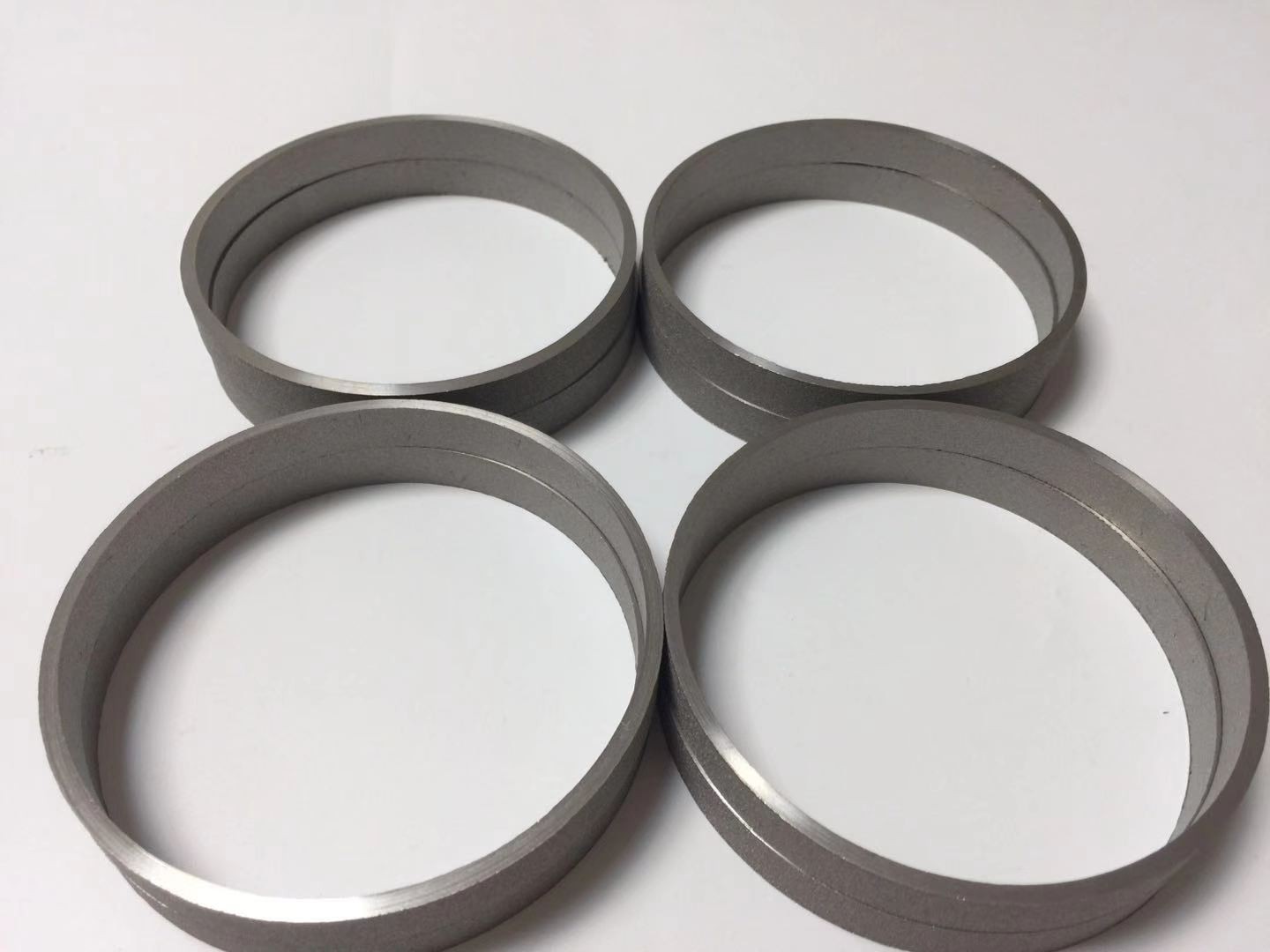

Product details

Smooth edge cutting, exquisite workmanship

The whole is beautiful and generous, it can be called a work of art

Flat surface, no slag, black spots

Production Process

It is made by adding high-purity powder into the rolling mill, press rolling, and then sintering at high temperature in a vacuum sintering furnace after rolling in the rolling mill.

Note: 1. During the rolling process, the pressure of the rolling mill is the most important, which affects the air permeability of the board. TopTiTech is equipped with professionals to carry out pressure rolling to ensure the air permeability is qualified.

2. The sintering time in the vacuum sintering process affects the service life of the board, so a sufficient and appropriate sintering time is the key process of the sintering process.

Product Usage

initpintu_

1. Filtration and recovery of catalyst;

2. Filtering of gas at elevated temperatures in the petrochemical sector.

3. Refining of hot flue gas in the metallurgy field.

4. Recovery of dust in the tail gas of solid fluidized bed;

5. Dust and exhaust gas purification in thermal power generation and nuclear power generation industry

Product packaging

The inside of the product is tightly wrapped with foam soft film, and the outside is packed in wooden boxes or cartons to ensure that the goods are intact and undamaged during transportation and safely delivered to customers.
