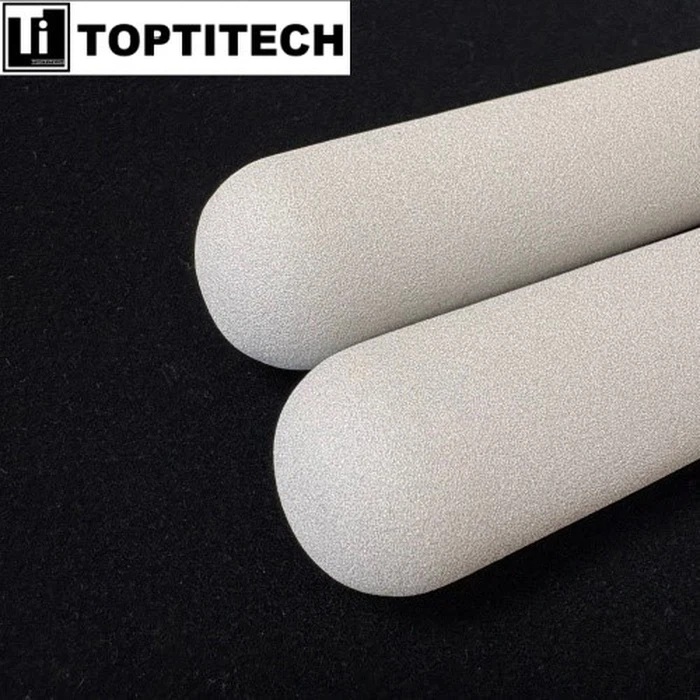

The titanium sintered powder filter cartridge is manufactured from high-purity titanium metal powder, formed via a precision sintering process that combines exceptional physical strength with a controlled pore structure. This standard model features an outer diameter of 30 mm and an effective filtration length of 250 mm, ensuring ample filtration area and high flow capacity.

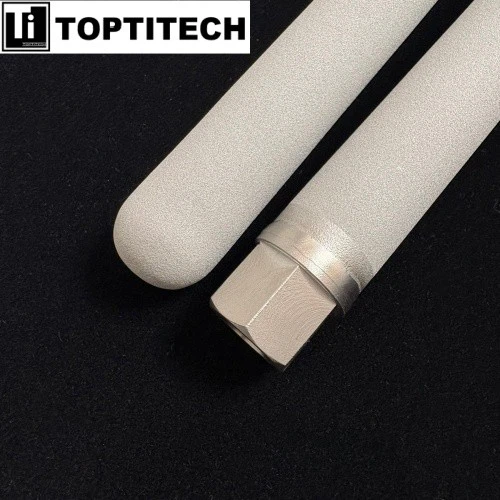

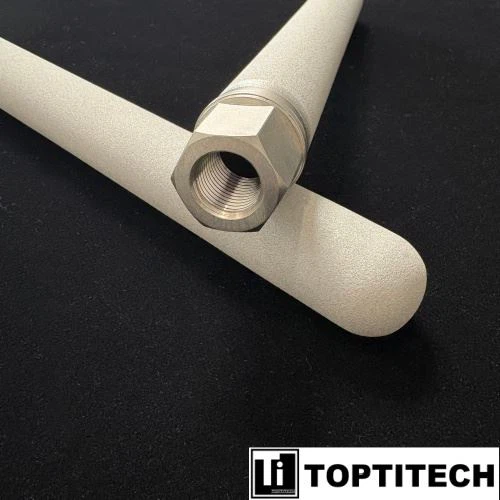

One end of the cartridge is equipped with a standard M16 x 1.5 internal threaded port and a mounting hex with a 24 mm across flats dimension, enabling quick, secure, and leak-proof connections to various pipeline systems, which greatly facilitates installation and maintenance.

55ea73285d3fa5ba5c7a52d5cad92cb1 cef09a43121ccb06b7eb952c148c5f57

Specifications

Material: Gr1 titanium
Diameter: 30mm
Length: 250mm
Pore size: 20 micron
Connector: One side with a hex female thread
Technique: sintering

ScreenShot2026-01-20105350080

Features

Main features

Exceptional Filtration Accuracy and Consistency

Utilizing advanced particle size distribution and sintering technology, this cartridge achieves a stable and uniform absolute filtration rating of 2 microns, effectively capturing target particles and ensuring downstream fluid cleanliness.

Superior Physical and Chemical Properties

The pure titanium construction provides extremely high mechanical strength and fatigue resistance, coupled with unmatched corrosion resistance. It is suitable for corrosive solvents, high-temperature fluids, and high-purity applications.

User-Friendly and Reliable Structural Design

The combination of the standard M16 x 1.5 internal thread and the 24 mm across flats hex ensures perfect compatibility with common wrench tools. This design allows for quick installation/removal and reliable, leak-free connections, enhancing maintenance efficiency.

Optimized Fluid Dynamic Performance

The 250 mm long filtration layer, combined with a uniform pore structure, delivers low flow resistance and high dirt holding capacity while maintaining high filtration accuracy, thereby extending the service life of the cartridge.

Specific Applications

High-Purity Chemicals and Electronic Specialty Gas Filtration: Used in semiconductor and photovoltaic industries to protect process equipment by filtering micron-sized particulate contaminants from high-purity chemical reagents and specialty gases.

Pharmaceutical and Bioproduct Purification: Suitable for clarifications of fermentation broth, catalyst recovery, and pre-filtration before sterile filtration in pharmaceutical processes, ensuring product safety and compliance.

Corrosive Media Processing: Leveraging the corrosion resistance of titanium, it is widely used for particulate removal and catalyst bed protection in harsh chemical processes involving strong acids, alkalis, and chloride solutions.

High-End Instrument Protection and R&D Experiments: Provides critical final barrier protection for analytical instruments, hydraulic systems, fuel systems, and laboratory R&D setups, ensuring the safety and stable operation of their precise components.
