Customized 2mm Thickness Titanium Bipolar Plate with Serpentine Pattern for PEM Electrolyzer is a customized titanium bipolar plate for professional use. It adopts a standard serpentine flow channel structure. Manufacturers make the fine serpentine flow channels with precise mechanical machining. This manufacturing method supports stable and accurate fluid flow inside the plate. The plate keeps a fixed thickness of 2mm. It improves the basic working performance and overall working efficiency of PEM fuel cell equipment.

2mm Titanium Bipolar Plate With Serpentine Pattern 4

This specialized bipolar plate plays a crucial role in facilitating efficient current collection and conduction, essential for sustaining the electrochemical reactions within fuel cells. The serpentine pattern design enhances gas distribution and flow uniformity, promoting effective gas separation and reaction kinetics. By providing a durable and corrosion-resistant structure, this titanium plate ensures reliable support for PEM fuel cell systems, contributing to their overall stability and longevity in various applications.

Products Specifications

Material	GR1 Titanium
Length x Width	46mmx95.5mm
Serpentine Pattern Size	Customized by mechanical machining processes according to the drawing
Thickness	2mm

Material Specification and Chemical Composition

Grade 1 / TA1 commercially pure titanium (UNS R50250, GB/T 3620.1 designation TA1) is the highest-purity grade in the commercially pure titanium family, with the following elemental limits:

Element	Ti (base)	Fe	O	C	N	H	Other (total)
Requirement	≥99.5%	≤0.20%	≤0.18%	≤0.08%	≤0.03%	≤0.015%	≤0.40%

Products Features

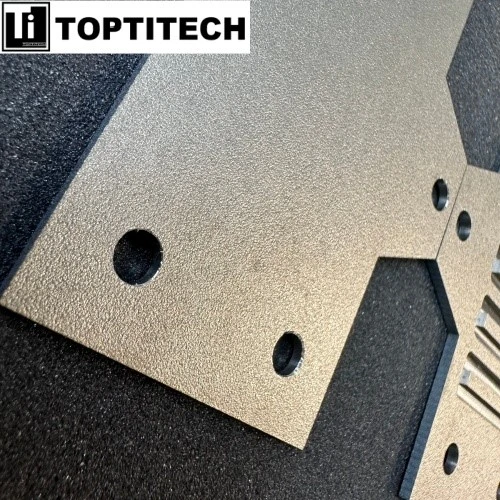

Customized 2mm Thickness Titanium Bipolar Plate with Serpentine Pattern for PEM Electrolyzer 4

Enhanced Efficiency

The serpentine flow channel structure improves gas distribution. It delivers even reactant flow and supports fast electrochemical reactions.

Stable Fluid Flow

The detailed serpentine layout keeps gas flow smooth. It lowers reactant crossover and speeds up cell reaction processes.

Strong Corrosion Resistance

The plate uses titanium material. Titanium offers great corrosion resistance. The plate maintains long service life in harsh working conditions.

Higher Current Collection Performance

The plate's structure collects and conducts current efficiently. It boosts the overall working performance of fuel cell systems.

Customized 2mm Thickness Titanium Bipolar Plate with Serpentine Pattern for PEM Electrolyzer 2

Customized 2mm Thickness Titanium Bipolar Plate with Serpentine Pattern for PEM Electrolyzer 1

Reliable Structural Stability

The plate has a standard 2mm thickness. It provides solid structural support. It keeps fuel cell systems stable and durable for long-term use.

Accurate Mechanical Processing

Standard mechanical machining makes the serpentine channels. The process guarantees precise and stable gas fluid flow control.

Products Applications

Electrolysis Catalyst: The component acts as a core functional catalyst in the water electrolysis process. It effectively splits pure water into hydrogen gas and oxygen gas under standard electrolysis working conditions. It stabilizes the electrolysis reaction and improves basic water splitting efficiency.

Gas Separation: The device achieves clear separation between hydrogen gas streams and oxygen gas streams during electrolysis. It eliminates gas cross-mixing issues inside the electrolyzer. It keeps collected gas products high in purity and ensures full operational safety for gas collection work.

Current Conduction: The electrolysis plate collects electric current generated by electrolysis reactions in a full and efficient manner. It stably conducts the collected current to external circuit devices. It supports stable power output and meets the usage demands of all kinds of electrolysis application scenarios.

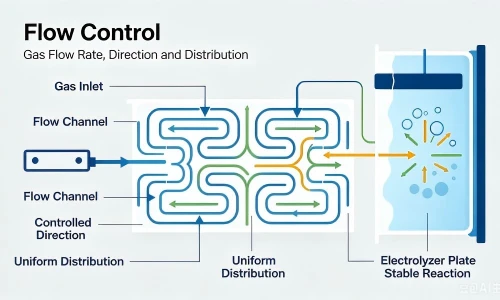

Flow Control: The core structure of the electrolyzer plate controls the flow rate and direction of internal reactant gases. It balances and standardizes the overall gas distribution inside the electrolyzer equipment. It removes uneven reaction problems and greatly improves the total electrolysis working efficiency.

Hydrogen Production: The electrolysis plate supports stable and continuous hydrogen generation at the electrolyzer cathode. It produces high-purity hydrogen gas with stable quality. The high-purity hydrogen can serve fuel cell operation, chemical production processing and multiple industrial manufacturing applications.
