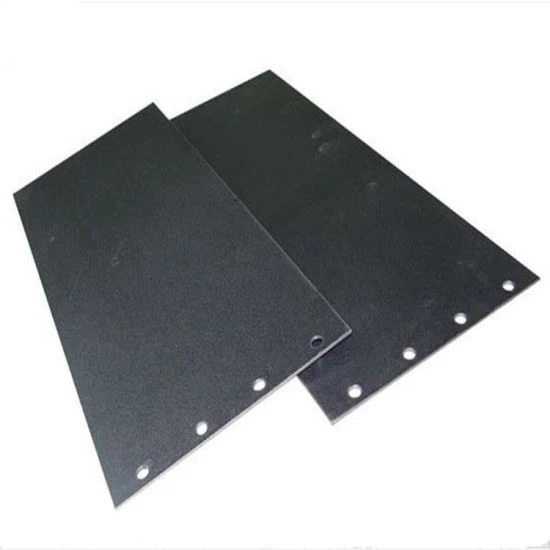

Titanium Electrode for Electrolyzer

titanium electrode01

titanium electrode02

Production Name:

Ruthenium coated Titanium electrode for saltwater electrolysis

Material

Gr1 Ti as substrate, mixed IR-Ta oxide as coating

Technology

Sandblasting, acid washing and Brush coating

Coating thickness 8-12 micron

Dimension and Shape

Available or customized drawing

Working Principle

Water electrolysis

The reaction on the anode and cathode of water electrolysis

H2O=H2+1/2O2

Cathode: 2H2O+2e=H2+2OH-

Anode: 2OH-2e=1/2O2+H2O

Working Parameter

1) Current density max 2000A/M2

2) Temperature60℃

Features

1) High anti-corrosion property;

2) Lasting working life;

3) Keep the operating voltage stably;

4) High current efficiency;

5) High catalytic property.

Remarks

1) Titanium anode also be called MMO anode, DSA and Insoluble anode

2) Cathode can be provided

Applications

1. Electroplating Industries

①. Electrodialysis;

②. Electrolytic cells;

③. Sensing elements;

④. Wastewater treatment;

⑤. The precious metal recovery;

⑥. Rotogravure printing.

2. Cathodic Protection Applications

①Seawater intakes;

②Heat exchanger and Condensers;

③Jetties and Tanks;

④Water heaters.
