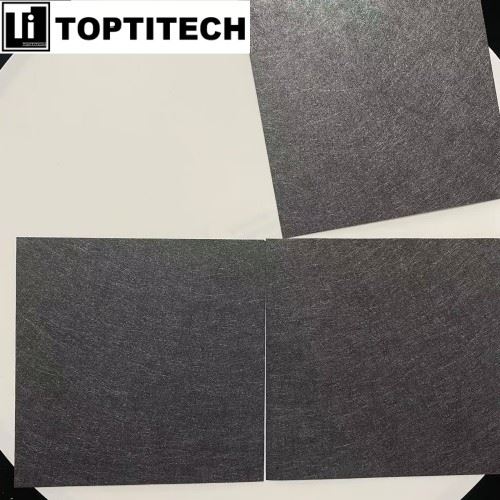

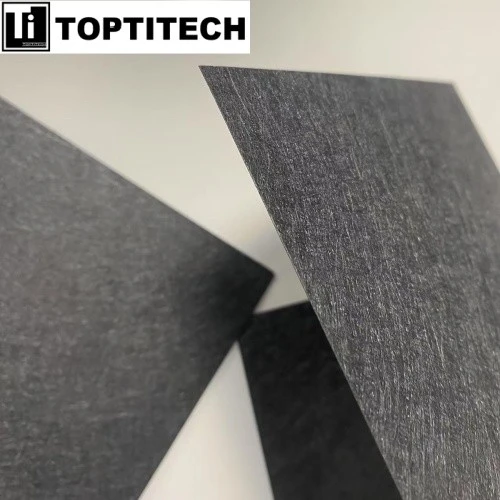

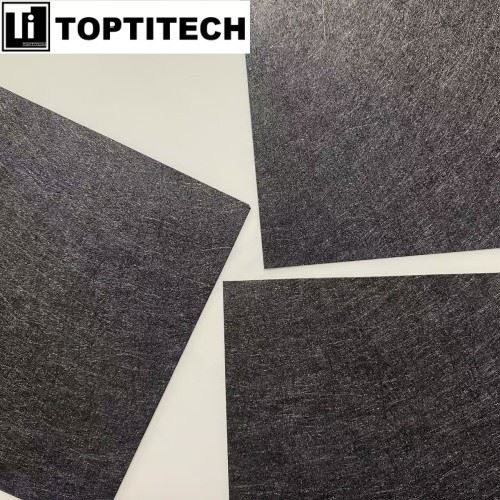

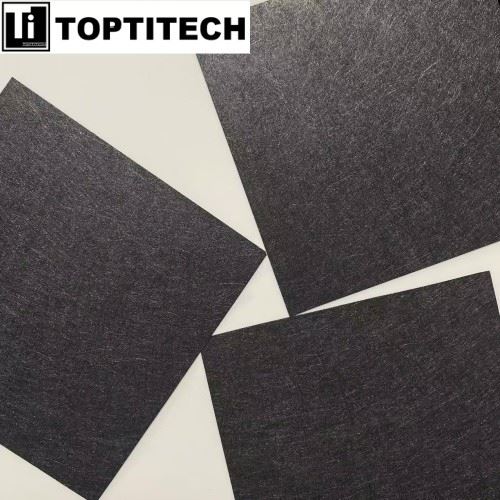

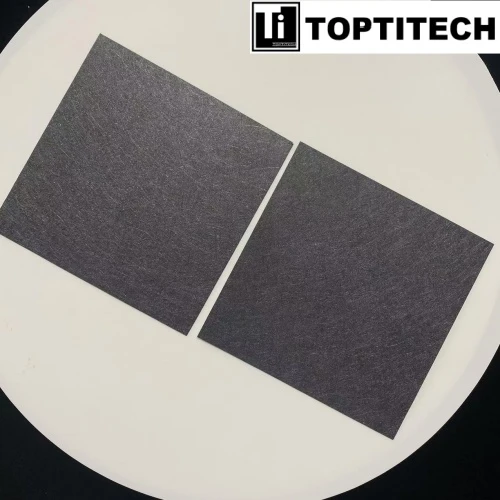

Utilizing high-purity titanium fiber felt as the substrate with a precise base thickness of 0.25 mm, this RuPt coating Ti felt features a uniform 0.5-micron ruthenium-platinum composite catalytic coating.

This unique design not only inherits the excellent electrical conductivity and corrosion resistance of titanium but also significantly reduces the overpotential of electrode reactions through the introduction of the noble metal catalytic layer. It achieves trinity optimization of gas transport, electron conduction, and catalytic activity, offering a revolutionary core component solution for proton exchange membrane and anion exchange membrane electrolyzers.

Products Specifications

Material	Ti felt
Size	1001000.25mm
Coating type	RuPt coating
Coating thickness	0.5 micron
Technique	Sintering

Products Features

Noble Metal Composite Catalytic Coating: Employs a nanoscale composite coating of ruthenium and platinum with precise thickness control at 0.5 microns. Ruthenium provides superior water oxidation activity, while platinum enhances hydrogen evolution stability and electron conduction. Their synergistic effect significantly lowers the activation energy barrier for overall water splitting.

3D Nano-Porous Conductive Architecture: The coating fully covers titanium fiber surfaces, forming a multi-level conductive network from macro-pores down to the nanoscale. This provides immense electrochemical active area while ensuring efficient mass transport of reactants and products within the three-dimensional space.

Exceptional Interfacial Stability: The ruthenium-platinum coating forms a robust interface with the titanium substrate through strong adhesion, effectively resisting catalyst layer delamination, corrosion, and active component dissolution under harsh conditions including acidic/alkaline electrolytes, high potential, and frequent start-stop cycles, ensuring long-term durability.

Optimized Gas-Liquid Transport Kinetics: Precisely tuned porosity and pore channel structure, combined with adjustable hydrophobic/hydrophilic coating surface properties, achieve balanced management of water, gas, and ion three-phase flow within the reaction zone. This effectively prevents gas blockage and facilitates rapid bubble detachment.

applications

PEM Water Electrolysis Anode PTL: Serves as the porous transport layer and catalytic support on the anode side of proton exchange membrane electrolyzers. Its ruthenium-based coating efficiently catalyzes the oxygen evolution reaction, maintaining low overpotential and long-term stability even at high current densities.

Bifunctional PTL for AEM Electrolyzers: Suitable for anion exchange membrane electrolyzer environments, it can act as a bifunctional electrode substrate supporting both oxygen evolution and hydrogen evolution reactions, simplifying the membrane electrode assembly structure.

High-Power-Density Electrolyzer Stack Modules: Its ultra-thin profile is particularly suitable for constructing compact, high-power-density electrolyzer stacks, maximizing the effective reaction area within limited space to improve overall system energy efficiency.

R&D and Testing for Water Electrolysis: Provides high-performance, standardized benchmark PTL materials for universities, research institutes, and corporate R&D departments to evaluate and optimize new catalysts, membrane electrodes, or operating protocols.
