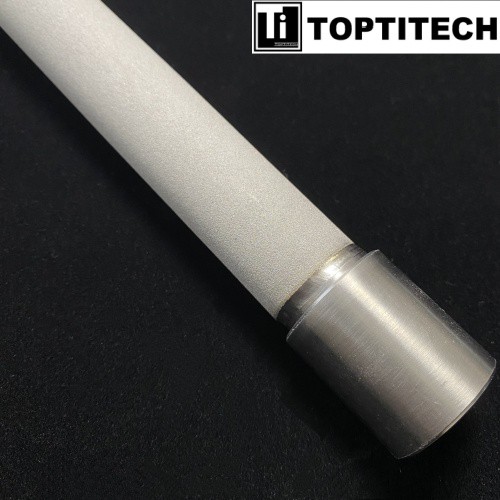

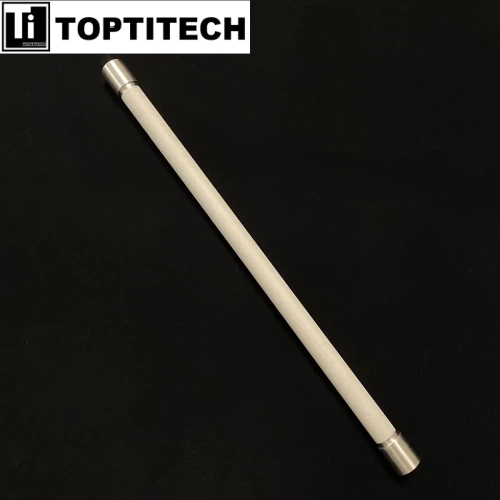

Name: 1/2" NPT Female Thread Titanium Filter For Deep Filtration Customized Suppliers, Manufacturers - Free Sample - TOPTITECH Metal Materials
Brand: TOPTITECH
SKU: 276166957

Engineered with high-purity Grade 1 Titanium powder, this advanced filter cartridge from TOPTITECH is manufactured through Cold Isostatic Pressing (CIP) and High-Temperature Vacuum Sintering. This precision-controlled thermal process creates metallurgical bonds between titanium particles, forming a rigid, monolithic porous structure with interconnected 3D pore channels throughout the matrix.

Precisely controlled porosity (30-40%) and uniform pore size distribution ensure minimal pressure drop and low flow resistance. This sintered titanium filter delivers exceptional performance in corrosion resistance, purity, structural stability, filtration efficiency, and extended service life.

Products Specifications

Material	ASTM Grade 1 Titanium (CP Ti)
Outer Diameter	25 mm
Length	570 mm
Filtration Rating	1 Micron (µm)
Connection	1/2" NPT Female Thread (Both Ends)
Technique	Powder Metallurgy Sintering

Products Features

Unrivaled Corrosion Resistance: Inherent titanium properties provide exceptional resistance to strong acids (nitric, chromic, dilute hydrochloric), strong alkalis, chlorides, organic solvents, and oxidizing media. Ideal for demanding applications in chemical processing, electroplating, hydrometallurgy, and environmental technology where other metals fail.

Ultimate Purity & Biocompatibility: Titanium is an ISO 5832-2 / ASTM F67/F136 certified biocompatible material, ensuring zero leaching, non-toxicity, non-magnetic properties, and no odor/taste transfer. The 1µm absolute rating guarantees pharmaceutical-grade purity, critical for sterile processes, biotech, food & beverage, and ultra-pure water (UPW) systems, eliminating contamination risks.

High Temperature & Pressure Stability: The robust sintered monolithic structure maintains uniform pore integrity under extreme conditions. Suitable for continuous operation ≤ 300°C and withstands high differential pressure (burst pressure rating: several MPa). Low thermal expansion prevents deformation.

Deep Bed Filtration & High Dirt Holding Capacity: The tortuous 3D pore network enables true depth filtration, trapping contaminants internally. Combined with the 570mm length, this design offers significantly higher dirt loading capacity than surface filters of similar size, reducing change-out frequency and total cost of ownership.

applications

Application industry

01/

Pharmaceutical & Biotechnology
-Final sterile filtration of process gases (Compressed Air, N₂, CO₂) - subject to validation.
-Polishing & protection for Water for Injection (WFI) & Purified Water systems.
-Particle removal from pharmaceutical solutions (esp. corrosive/high-value).
-Sterile inlet/outlet air filtration for fermenters.
-Critical purification steps in biologics manufacturing.

02/

Food & Beverage
-Clarification of high-acidity products (juices, vinegar), wines, spirits, and condiments.
-Final filtration for process water & CIP solutions.
-Sterile filtration of CO₂ and other process gases.

03/

Electronics & Semiconductor
-Final point-of-use (POU) polishing in Ultra-Pure Water (UPW) systems (1µm level).
-Particle control for high-purity chemicals (acids, bases, solvents, photoresists, CMP slurries).
-High-purity gas filtration.

04/

Chemical Processing & Electroplating
-Recirculation filtration & purification of strong acids (H₂SO₄, HNO₃, HCl, mixed acids) and alkalis.
-Continuous purification of aggressive plating baths (e.g., chromic acid, electroless nickel) to remove particulates and ensure coating quality.
-Precious metal catalyst recovery.
-Purification of corrosive gases (e.g., Cl₂, dry HCl).

05/

Environmental & Water Treatment
-Precision filtration of highly corrosive industrial wastewater (e.g., pickling effluent, heavy metal streams) for reuse/recovery.
-Pre-treatment for seawater desalination or challenging corrosive water sources.
-Critical filtration stages in landfill leachate treatment.

06/

Research & Laboratory

-High-purity, corrosion-resistant filtration for analytical procedures, synthesis, and pilot-scale equipment.
