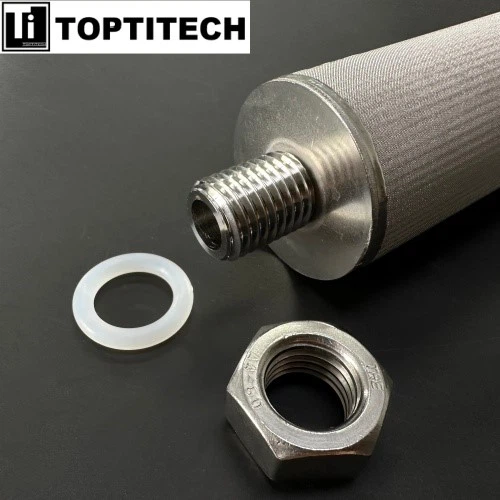

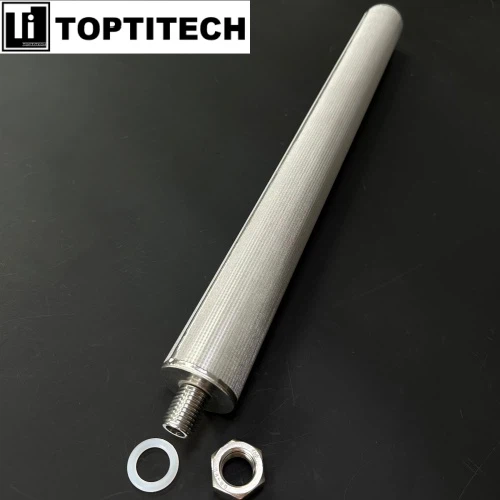

The 316L stainless steel sintered wire mesh filter cartridge is a high-performance filtration component engineered specifically for demanding industrial vacuum applications. With precision dimensions of 50mm diameter and 600mm length, this cartridge features an integrated M20 interface for seamless integration into vacuum pipeline configurations.

The multi-layer sintered construction utilizing 316L stainless wire mesh creates a robust porous structure capable of maintaining filtration integrity under significant pressure differentials while ensuring consistent performance in continuous operation.

Products Specifications

Material	316L
Filtration grade	20um
Diameter	50mm
Length	600mm
Connector	M20
Technique	Sintering

Products Features

Optimized Filtration Structure

The multi-layer sintered mesh construction creates depth filtration capability, effectively capturing contaminants throughout the cross-section rather than just surface loading. This design significantly extends service intervals while providing consistent 20-micron filtration performance throughout the cartridge lifespan.

Vacuum-Specific Mechanical Integrity

Engineered to withstand the substantial pressure differentials encountered in vacuum applications, the cartridge maintains structural stability under both continuous vacuum conditions and potential pressure surge events. The reinforced end caps and precision welding ensure no particle release or bypass under variable vacuum levels.

Corrosion-Resistant Construction

Manufactured from 316L stainless steel, the filter demonstrates excellent resistance to corrosion from moisture, mild chemicals, and atmospheric conditions commonly encountered in vacuum systems. This material selection prevents rust formation and material degradation that could compromise vacuum purity.

Efficient Maintenance Operation

Designed for straightforward installation and serviceability, the standardized M20 interface enables quick replacement without system modification. The cartridge supports multiple cleaning cycles through backflushing or ultrasonic methods, restoring permeability for extended service life.

applications

Industrial Vacuum Pump Protection

Installed upstream of vacuum pumps to prevent abrasive particles and debris from entering pump mechanisms, reducing wear on critical components and maintaining optimal vacuum performance.

Vacuum Furnace Gas Filtration

Used in vacuum heat treatment systems to capture particulate matter and prevent contamination of workpiece surfaces, ensuring process consistency and product quality in metallurgical applications.

Semiconductor Manufacturing Vacuum Lines

Provides critical protection for sensitive vacuum components in chip fabrication equipment, preventing microscopic contaminants from affecting process chambers and instrumentation.

Laboratory Vacuum System Applications

Suitable for research and analytical instrument vacuum systems where consistent pressure stability and clean vacuum environments are essential for accurate measurements and reproducible results.

Medical Sterilization Equipment

Incorporated into autoclave and sterilization system vacuum circuits to maintain sterile conditions by filtering airborne contaminants and preventing backstreaming particulate contamination.

Packaging Machine Vacuum Generators

Protects vacuum ejectors and generators in automated packaging machinery from dust and packaging material debris, ensuring reliable operation and reducing maintenance requirements in high-cycle production environments.
