Name: Double-frame Layer Stainless Steel 316 Pleated Filter Cartridge Customized Suppliers, Manufacturers - Free Sample - TOPTITECH Metal Materials
Brand: TOPTITECH
SKU: 239512465

Crafted from premium-grade stainless steel 316, TOPTITECH's Double-frame Layer Stainless Steel 316 Pleated Filter Cartridge exhibits outstanding corrosion resistance and structural integrity. Its unique double-layered frame structure enhances the overall strength and robustness of the cartridge, resulting in superior pressure resistance. This exceptional feature ensures reliable filtration performance even in high-pressure environments.

The pleated design of the cartridge further enhances its filtration efficiency. The pleats significantly increase the available filtration area, enabling effective removal of contaminants such as particles, sediments, and rust from liquids and gases. With a larger surface area for filtration, the cartridge achieves optimal particle capture and extends its service life, minimizing downtime and maintenance requirements.

Products Specifications

Material	stainless steel 316L
Filtration grade/Pore size	50um
Size	φ60mmx500mm
Connection	Customized
Layers	double-frame layer+pleated filtration layer
Technique	Sintering

Products Features

Double-frame Layer Stainless Steel 316 Pleated Filter Cartridge 4

Enhanced Filtration Efficiency: The double-layered frame structure and pleated design of this filter cartridge contribute to its exceptional filtration efficiency. The pleats provide a larger filtration area, allowing for efficient removal of particles, sediments, and rust from liquids and gases. This results in cleaner and purer output, ensuring superior filtration performance.

High Compressive Strength: The double-frame layer design of the cartridge enhances its compressive strength, making it highly resistant to pressure. It can withstand demanding industrial environments and maintain its structural integrity even under high-pressure conditions. This attribute ensures reliable filtration performance and minimizes the risk of cartridge failure.

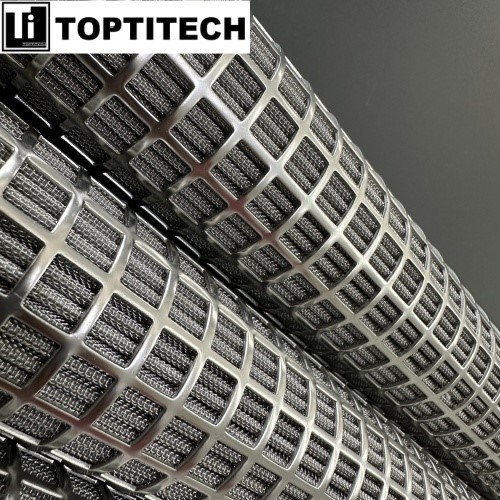

Double-frame Layer Stainless Steel 316 Pleated Filter Cartridge 2

Superior Durability: Constructed with stainless steel 316, this filter cartridge offers outstanding corrosion resistance and durability. It is highly resistant to rust, oxidation, and chemical degradation, making it suitable for use in a wide range of industries. Its robust build ensures a longer service life, reducing the need for frequent replacements and resulting in cost savings over time.

Excellent Temperature Resistance: The stainless steel 316 construction provides exceptional temperature resistance to the filter cartridge. It can effectively operate in high-temperature environments without degradation, ensuring consistent filtration performance even under extreme temperature conditions. This advantage makes it ideal for applications that require filtration at elevated temperatures.

Production and Advantages of Double-frame Layer Stainless Steel 316 Pleated Filter Cartridge

Stainless Steel Pleated Cartridge for Melt Filters

1. Frame Layer Fabrication: Two independent frame layers are constructed using stainless steel 316 material, one on the inner side and the other on the outer side of the filter cartridge. These frame layers provide robust support, ensuring stability and durability of the cartridge under high-pressure conditions.

2. Cartridge Pleating: The filtration media is pleated, creating a series of folds. This pleated structure increases the surface area of the cartridge, improving filtration efficiency and capacity to effectively capture and filter particles and contaminants.

Advantages

Enhanced Filtration Efficiency

The double-frame layer design enhances the stability and structural integrity of the cartridge, enabling it to handle filtration tasks efficiently under high flow rates and pressures. This design also increases the filtration surface area, improving filtration efficiency and ensuring outstanding particle capture capability.

Extended Cartridge Lifespan

The support provided by the double-frame layer helps the cartridge maintain its shape and structural stability during use. This contributes to an extended lifespan, reducing the frequency of cartridge replacements and maintenance costs.

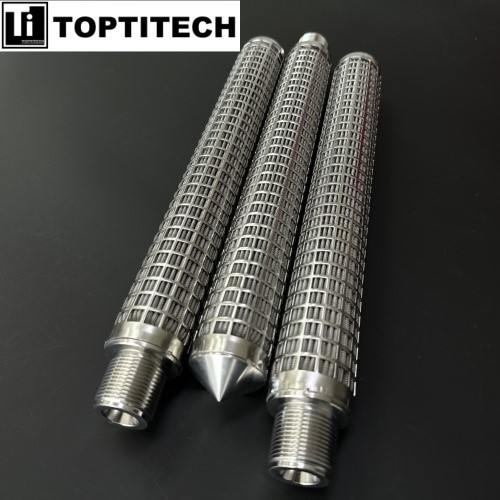

Double-frame Layer Stainless Steel 316 Pleated Filter Cartridge 1

Increased Pressure Resistance

The dual-layer frame provides additional support and strength, enabling the cartridge to withstand higher pressures. This high compressive strength ensures the reliability and stability of the cartridge under high-pressure environments, reducing the risk of cartridge damage or leakage due to excessive pressure.

Versatile Adaptability

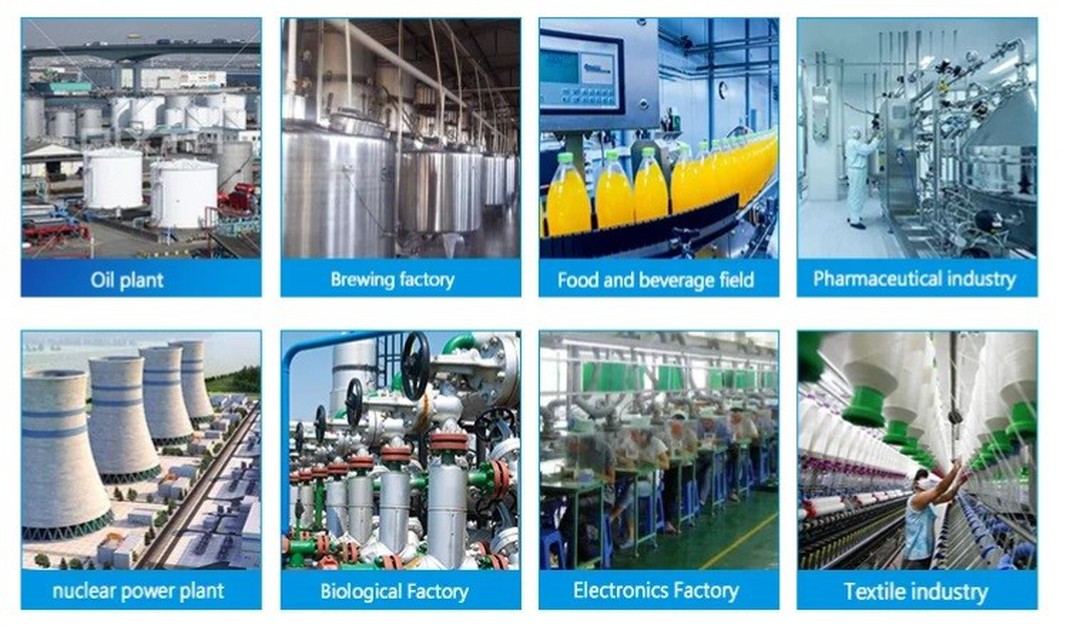

The double-frame layer design makes the cartridge suitable for various industrial applications. It can accommodate the filtration needs of different liquids and gases, delivering excellent filtration performance in critical applications across diverse industries.
