Products Description

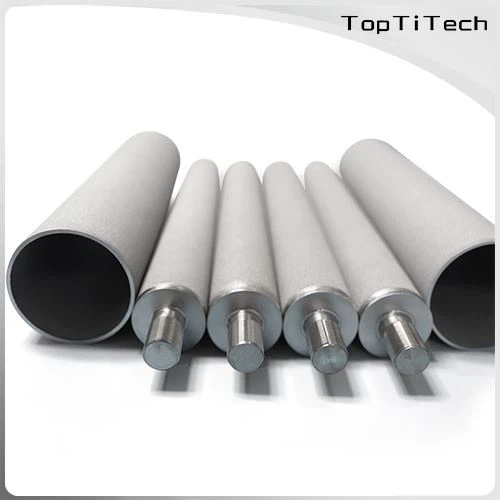

Sintered metal filter cartridges are a type of filter media commonly used in industrial applications. These filters are made by sintering metal powder into a solid mass, which is then shaped into a cartridge form. The sintering process creates a highly porous structure that allows fluids to flow through while capturing impurities and contaminants. Sintered metal filter cartridges are known for their high filtration efficiency, durability, and resistance to high temperatures and corrosive environments.

Sintered metal filter cartridges come in different materials such as stainless steel, bronze, and titanium. The type of fluid being filtered and the specific application will influence the material choice. Stainless steel is commonly used in applications where high strength, corrosion resistance, and high-temperature resistance are required. Bronze is often used in applications where low friction and good wear resistance are needed. Titanium is ideal for applications where resistance to chemicals and high-temperature environments is required. Sintered metal filter cartridges can be designed in different pore sizes and shapes to meet specific filtration requirements. They are easy to clean and maintain, making them a cost-effective and reliable choice for many industrial filtration applications.

Parameter

Filtration accuracy: 0.2um-100um

Porosity: 28-50%
Compressive strength: 0.5-3mpa

Temperature resistance: 300. C (wet state)

Significant working pressure difference: 0.6mpa

Diameter: 0.5-200mm

Length: from 1 inches (25mm) to 40 inches (1000mm)

Interface type: M20 M30 222 226

Filtration accuracy: 0.2 micron 1, micron 3, microns, 5 microns, 10 microns, 20 microns, 30 microns, 50 microns, 80 microns, and 100 microns.

Product feature

1, Uniform structure, narrow aperture distribution, good separation effect.

2, High voltage, small filtration resistance, penetration.

3, High-temperature resistance, generally can be under 280℃ regular use.

4, Good chemical stability, acid, and alkali corrosion resistance, with degradation properties.

5, No secondary pollution, good mechanical properties, can be pumped filter, pressure filter.

6, Do not interact with microorganisms, good molding process, the whole without welding, the length can be 1 meter.

7, Online regeneration, easy cleaning, and long service life.

Application fields

Titanium filter element with its performance can be widely used in the pharmaceutical industry, water treatment industry, food industry, biological engineering, chemical industry, petrochemical industry, metallurgical industry, and gas purification. It is a kind of new material with wide development prospects. Typical uses include:

1, The pharmaceutical industry uses large infusion, small injection, decarbonization filtration, and dilute link in the terminal filtration before the bao 'a filtration.

2, In addition to impurities filtering, material decarbonization filtration, and fine filtration.

3, Water treatment industry in ultrafiltration, RO, EDI system security filtration, ozone baa filtration, and ozone aeration.

4, Food and beverage, liquor, beer, vegetable oil, mineral water, soy sauce, vinegar clarification filtration.

5, Chemical industry in the liquid products, liquid raw materials, a drug intermediates decarburization filtration and precision filtration, ultrafine fine body, catalyst filtration recovery, resin adsorption precision filtration and system heat conduction oil, material removal filtration, catalytic gas purification.

6, Oilfield backflow water filtration, seawater desalination in the field of reverse osmosis before Baoan filtration.

7, The dye industry of high-temperature decarbonization, desiccate soil filtration.

8, Gas purification of steam, and compressed air, in addition to impurities filtration.
