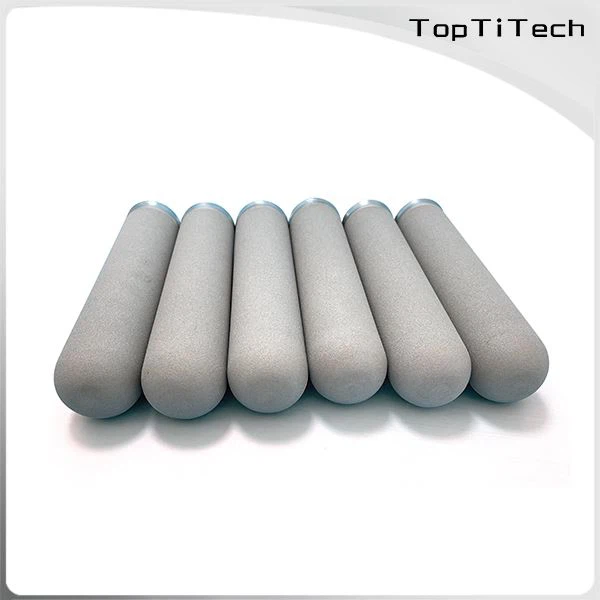

Sintered Filter Cartridge Stainless Steel SUS316L

Toptitech produced the SUS316L Sintered Stainless Steel Powder Filter Cartridge gets a good

reputation from our customers with large dirt-holding capacities and long life spans.

SUS316L Sintered Stainless Steel Powder Filter Cartridge is made of stainless steel powder

pressed through a mold, sintered at high temperature, and integrally formed. It has the advantages of

high mechanical strength, high-temperature resistance, good corrosion resistance, uniform pore size

distribution, good air permeability, can be cleaned and regenerated, and can be machined by welding

machines. By adjusting the powder particle size and process conditions, a porous metal sintered filter

element with a wide range of filtration precision can be produced. Due to the many advantages of

porous metal powder sintered materials, such products are widely used in catalyst recovery, gas-liquid

filtration and separation in chemical, pharmaceutical, beverage, food, metallurgy, petroleum,

environmental protection fermentation, and other fields; various gases, Dust removal, sterilization, and

oil mist removal of steam; noise reduction, flame retardation, gas buffering, etc.

Product features of stainless steel powder sintered filter element:

1. The shape is stable, and the impact resistance and alternating load capacity are better than other

metal filter materials;

2. Air permeability, stable separation effect;

3. Excellent unloading strength, suitable for use in high temperature, high pressure, and strong corrosive

environments;

4. Especially suitable for high-temperature gas filtration;

5. Products of various shapes and precisions can be customized according to user requirements, and

various interfaces can also be used by welding.

6. Performance: acid resistance, alkali resistance, high-temperature resistance, low-temperature

resistance, fire resistance, anti-static

7. Working environment: nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5%

hydrochloric acid, molten sodium, liquid hydrogen, liquid nitrogen, hydrogen sulfide, acetylene, water

vapor, hydrogen, gas, carbon dioxide, and other environments.



Product Parameters:

Production Name:

SUS316L Sintered Stainless Steel Powder Filter Cartridge

Material: SS316L

Main technology: Sintered

Outside Size: Diameter 10MM, we can offer 4MM-400MM

Thickness: 1.0MM

Length: 200MM

Acceptable: Less than 1600MM, according to customized length, and shape.



How to improve the service life of powder sintered filter element, please pay attention to the following

details when using.

1. Contaminant loading The pollutant loading process of a powder-sintered filter element is the process of blocking the through holes of the filter element. When the powder-sintered filter element is blocked by polluted particles, the pores that can pass the liquid flow are reduced, and the pressure difference will increase to ensure the flow through the filter material.

2. The system can quickly reach and maintain the desired level of oil cleanliness. Glass fiber and synthetic fiber are made by special blending or imported glass fiber as filter material. It has the characteristics of small resistance, up-to-standard dirt-holding capacity, and easy replacement.

3. In the initial stage, due to the many pores on the filter material, the pressure difference through the powder-sintered filter element increases very slowly, and the blocked pores have little effect on the overall pressure loss.

4. When the blocked hole reaches a value, the blockage is very rapid, at this point, the pressure difference across the filter element rises very quickly. The number, size, shape, and distribution of pores in a filter element's media indicate why one filter element lasts longer than another.

5. When it is found that the pressure increases, it means that the impurities in the liquid flow have blocked the steel mesh of the powder-sintered filter element. This is to remove the filter element in time and clean it repeatedly with pure tap water. The low-pressure series filter element is also equipped with a bypass valve. When the filter element is not replaced in time, the bypass valve can be automatically opened to ensure the normal operation of the system.

sintered powder metal filter from TOPTITECH

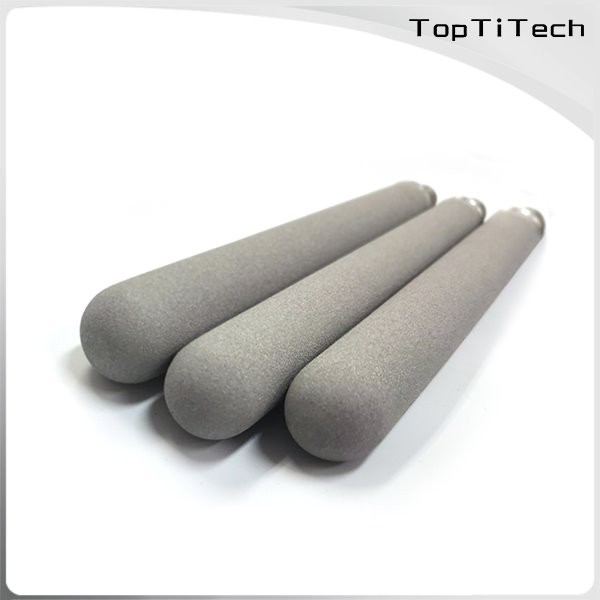

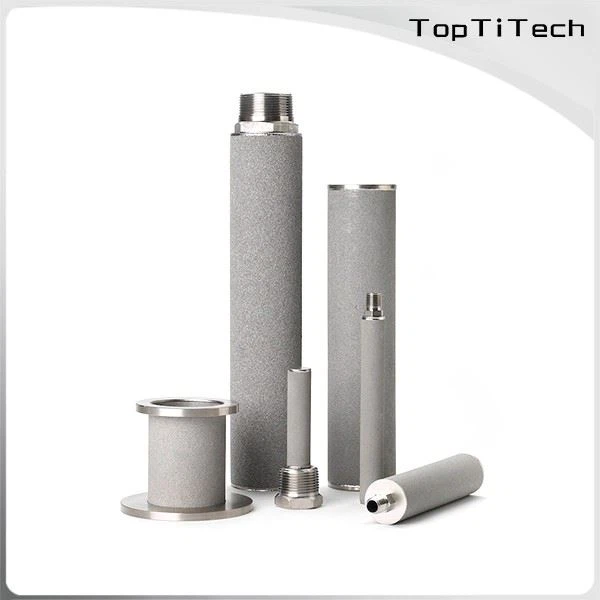

SUS316L Sintered Stainless Steel Powder Filter Cartridge

Application:

Those are suitable for distillation, absorption, evaporation, filtration, and other processes in petroleum,

refining, chemical, and light industries.

1. Fluidizing

2. Sparging

3. Liquid Filtration

4. Diffusion

5. Flame Arrestor

6. Gas Filtration

－In all of these industries above

What should be paid attention to in the hydraulic system of stainless steel sintered mesh filter element?

1. Exhaust treatment

When the stainless steel sintered mesh filter element is disassembled and cleaned every time, it should be gently put back according to the steps. Then, before using it again, the main pump should be exhausted once to exhaust the air inside, and the pipe should be opened. Then inject hydraulic oil, so as to ensure that the whole machine can work.

2. Open attention

After using the stainless steel sintered mesh filter element for a period of time, it is necessary to open it for a major cleaning and maintenance, to clean up the oil residue or attachments on the hydraulic oil filter element, and when opening the device, it is necessary to pay attention to step by step. , do not have omissions, do not use excessive force, pay attention to protective devices

3. Change the hydraulic oil

Sometimes, under certain circumstances, the machine needs to use new hydraulic oil, such as changing the brand or proportion of hydraulic oil, etc. When replacing the hydraulic oil, pay attention to the entire stainless steel sintered mesh filter element. Change, just cleaning is not enough, otherwise, it will be like not changing the oil at all.

Package

1. Our products are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags to ensure that the products have no collision, no shaking, and no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, and

the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods

can be delivered to the designated place of the customer without damage.

TopTiTech is one brand that has more than 11 years of experience in porous titanium materials, it has a

QC team, a Sales team, and Research and Development team, and our company has passed the ISO

9001-2015 certification. We are a typical China supplier. We are professionally exporting under the

standards of ASTM, GB, and AMS, as well as nonstandard porous titanium materials. Now we have

gained close cooperation with clients from Korea, Iran, Europe, and America, and won good comments

and suggestions from our users.

Our main products are

Sintering Titanium Powder Filter,

Titanium Sintered Filter Sheet,

Titanium Fiber Felt,

Titanium Foil,

Sintering Titanium Powder Filter

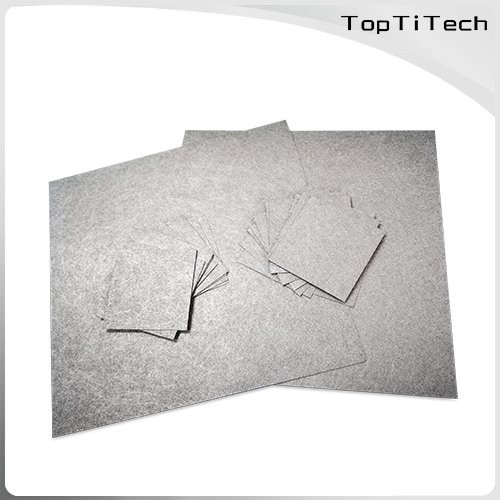

Titanium Sintered Filter Sheet

Titanium Fiber Felt

Titanium Foil

• Titanium Anode,

• Titanium Aeration Head,

• Porous Sintered Titanium Filter Tube,

• Stainless Steel Powder Sintered Filter Tube,

• Stainless Steel Sintered Wire Mesh, and so on.

Titanium Anode

Titanium Aeration Head

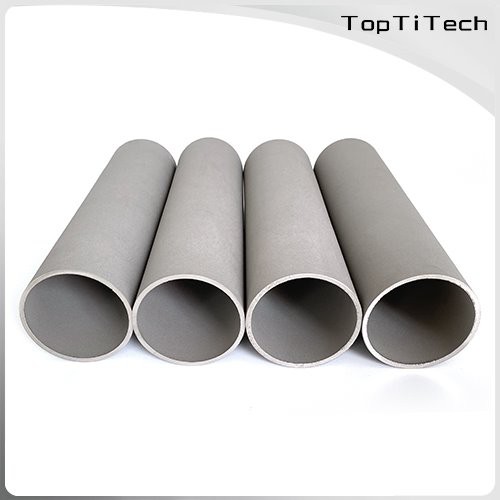

Porous Sintered Titanium Filter Tube

Stainless Steel Sintered Wire Mesh

Our production also has been widely used in the Petrochemical industry, Aviation, and Aerospace

industry, Medical industry, Food industry, etc.
