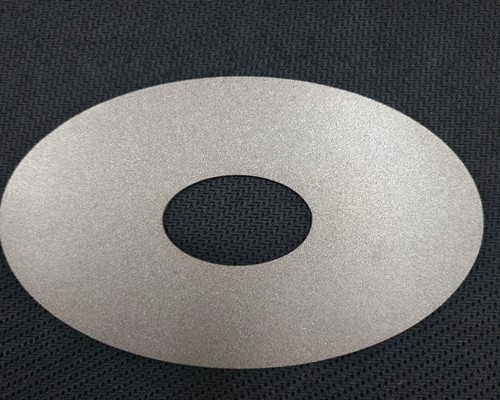

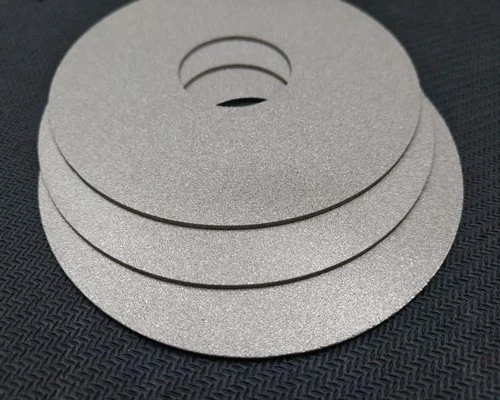

Sintered porous titanium plate is a porous material made of titanium powder that is compressed and heated to create a solid block. The block is then treated with acid or other chemicals to remove any remaining impurities and create a porous structure.

As a porous transport layer for water electrolysis hydrogen production, the porous titanium plate can be applied between the anode and cathode of the electrolytic cell, and plays a connection role. The porous structure can provide a large surface area, enhance the transport of hydrogen and oxygen, and improve the electrolysis efficiency. At the same time, the titanium plate has good chemical stability and corrosion resistance, and can withstand the corrosion of the electrolyte and the conditions of high temperature and high pressure. Therefore, the porous titanium plate is an ideal porous transport layer material for hydrogen production by water electrolysis.

Products Parameters

Aperture size	0.1~3mm
Porosity	30%~60%
Thickness	0.5mm~6mm
Specific surface area	100~1000m²/m³
Tensile strength	300~600MPa
Thermal conductivity	2~20W/mK
Application fields	widely used in aviation, automobiles, medical equipment, biological materials, filter materials and other fields

Products Features

Efficient transmission of hydrogen

The highly porous structure of the porous titanium plate enables the effective transmission of hydrogen and has good gas transmission performance, which can significantly improve the efficiency of the water electrolysis hydrogen production system.

Lightweight and corrosion-resistant

The porous titanium plate is light in weight and is very suitable for making the transmission layer. At the same time, the titanium material can resist the corrosion of many acidic and alkaline media, and has a long life and stable performance.

Easy to clean

The porous titanium plate has a large opening rate and a large surface area, which is easy to clean and handle, and can effectively reduce the pollution of the water electrolysis hydrogen production system and reduce the impact on the environment.

Highly stable

The porous titanium plate has a long service life and high stability, and can keep its pore structure and performance unchanged, further improving the stability of the hydrogen production system, thereby meeting various needs of industrial and scientific laboratories.

Products Applications

1. Medical field: Porous titanium plate has good biocompatibility and mechanical properties, and is widely used in medical fields such as orthopedics and dentistry, as artificial bone and dental implants.

2. Energy storage field: The large surface area and pore structure of porous titanium plates make them potential applications in capacitors, which can be used in the manufacture of electronic devices such as batteries and capacitors.

3. Sewage treatment field: The high specific surface area and good catalytic performance of porous titanium plates can be used in the field of sewage treatment, such as the oxidative degradation of organic wastewater and the adsorption of metal ions.

4. Environmental field: Porous titanium plates can be used to clean harmful gases and odorous substances in the atmosphere, and can also be used in environmental protection fields such as seawater desalination and water resource utilization.

5. Aerospace field: The lightweight and high strength of porous titanium plates can be used in the aerospace field, such as manufacturing aircraft, satellites and other components.
