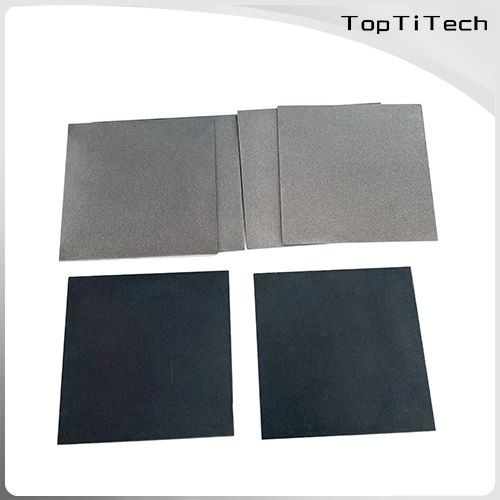

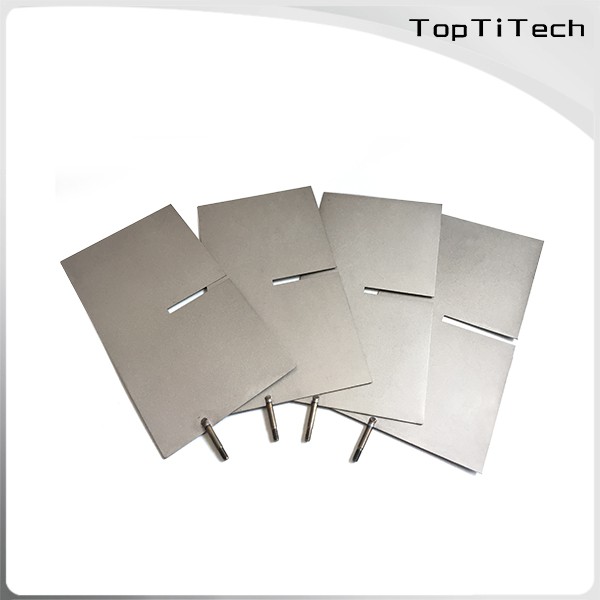

Titanium electrode plate for water treatment is a platinum group noble metal oxide with high electrocatalytic performance, strong oxidation resistance and good electrical conductivity coated on a pure titanium substrate, which is an insoluble anode.

First of all, this kind of titanium anode has the characteristics of light specific gravity, good strength, corrosion resistance and good performance, especially the wet chlorine resistance performance is unmatched by other metal materials. For example: when there is a small amount of chloride ions in the electrolysis of water, the stainless steel plate will quickly undergo pitting corrosion. This will decrease the electrode's lifespan, whereas titanium does not have these issues.

Secondly, because a variety of platinum group noble metals are added to the coating, it has high current efficiency, good electrical conductivity, good electrocatalytic performance, strong oxidation resistance, long working life and energy saving.

Products Parameters

Product name	Titanium electrode plate for water treatment
Brand	TOPTITECH
Product base material	Gr1 pure titanium
Product coating	Ru/Ir/Pt (ruthenium iridium platinum)
Product process	Nano coating - high temperature sintering
Specifications	Customized according to customer requirements

Products Features

It has excellent properties

such as corrosion resistance, high temperature resistance, high strength, easy guarantee of filtration accuracy, and easy regeneration; The plates is sintered at high temperature, so the surface particles are not easy to fall off; in the air the temperature in use can reach 300°C;

Suitable for filtering various corrosive media

It is suitable for filtering various corrosive media, such as: weak hydrochloric acid, sulfuric acid, hydroxide, sea water, aqua regia, and chloride solutions such as iron, copper, and sodium;

Has excellent mechanical properties

can be machined for cutting, welding, etc., has high compressive strength, and the internal pressure breaking strength is as high as 0.3MPa;

Can be reused

The regeneration method is simple and can be reused after regeneration.

Products Processing

Firstly, all raw materials are monitored. When metal powder is analyzed, in addition to its metallurgical composition, its particle size distribution, bulk ratio, etc. are analyzed. After being formed by cold isostatic pressing, it is sintered at high temperature and high vacuum. It is necessary to detect the carbon content before and after the sintering operation. Each batch of products produced needs to be tested for bubble point. The hardness of the medium has been determined. The diameter of spherical particles also needs to determine their permeability, density and carbon content.

Products Application

1. Production of sodium hypochlorite via electrolysis in the chlorate and chlor-alkali industries

In the production of chlor-alkali, pure saturated salt water is used as electrolytic solution, titanium electrode is used as anode, and asbestos wool attached to iron mesh is used as cathode. The anode chamber produces chlorine gas, and the cathode chamber produces hydrogen gas and sodium hydroxide. After purification, it is widely used in various industries. in industrial production.

An epoch-making contribution to the science of electrochemistry has been made by the use of titanium anode, which has significantly aided the growth of the chlor-alkali sector.The electrode has high catalytic activity for chlorine analysis, and has good electrocatalytic activity, mechanical stability and chemical stability for chlorine analysis reaction, so It is an irreplaceable electrode material in today's chlor-alkali industry, and it has a lifespan of over five years.

2. Electrolyzed functional water

Water that has been artificially treated to achieve a variety of beneficial purposes is referred to as functional water. With its high practicability, good sterilization effect, and lack of secondary pollution, electrolyzed water is a well-liked sterilization treatment technique. Titanium electrodes, which are frequently used in electrolyzed water machines, are used to electrolyze drinking water or trace salt water in order to generate functional water.

1) Using electrolysis to generate hypochlorite, new ecological oxygen, hydroxyl radicals and other strong oxidizing substances to kill microorganisms.

2) Directly kill germs by acting on them with electrolytic electrodes.

3) Alkaline ionized water can directly treat a variety of diseases, effectively improve the metabolic function of the human body, eliminate harmful acidic metabolite free radicals, and enhance physical fitness to prevent and improve disease resistance.

4) Acidic ionized water has the effect of inhibiting the growth of bacteria, the effect is the same as that of astringent water for beauty, and it should be sterilized with strong oxidation.

3. Cathodic protection

In the ocean, ship hull, bridge and other steel use environments, due to the corrosion of impurities in the steel and micro-batteries, coupled with the complex natural environment, although corrosion-resistant alloy steel is selected and the thickness of the material is increased to coat excellent corrosion-resistant paint, these The corrosion of structures is still very serious, which poses a great threat to safe production, and cathodic protection is a convenient and important measure to effectively protect permanent steel structures in the ocean. Using an applied current to make the entire surface of the protected metal structure become a cathode is called impressed current cathodic protection. Or connect a metal or alloy with a more negative potential to the metal equipment that needs protection, which is called sacrificial anode protection.
