Sintered titanium rod filter element is a porous filter element made of industrial high-purity titanium, which is formed by sieving, cooling and isostatic pressing, and then sintered at high temperature and high vacuum. It has outstanding qualities such as corrosion resistance, high temperature resistance, high strength, ease of filtration accuracy assurance, and ease of regeneration. It is suitable for the filtration of various corrosive media, such as: hydrochloric acid, sulfuric acid, hydroxide, sea water, aqua regia, and chloride solutions such as iron, copper, and sodium.

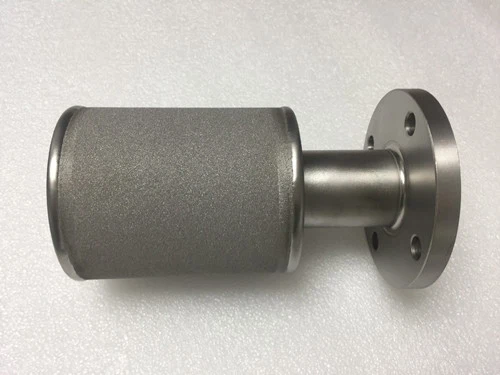

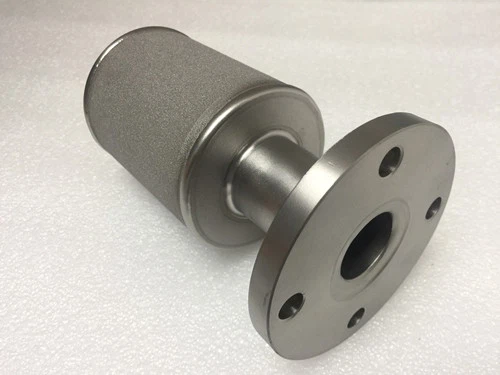

Sintered titanium rod filter element are generally equipped with certain installation interfaces, such as flanges, after they are produced. Flanges include butt welding flanges, plate flat welding flanges, neck flanges, integral flanges, socket flanges, threaded flanges, etc. After the flange is installed, it can be installed and used with the equipment.

Products Parameters

Filtration accuracy	0.22um-100um
Porosity	30-40%
Air permeability	0.02-20M³cm/m²h
Compressive strength	0.5-1.5Mpa
Temperature resistance	280°C (wet state)
Maximum working pressure difference	0.6Mpa
Diameter	Φ30mm Φ50mm Φ60mm
Length	5 inches 10 inches 20 inches 30 inches 40 inches
Interface form	M20 M30 222 226 DFPD (double flat port)

Products Features

High temperature resistance

Generally, it can be used normally under 280 degrees.

Uniform and stable precision

Uniform structure, narrow pore size distribution, high separation efficiency, high porosity, low filtration resistance, high penetration efficiency.

Resistance to corrosion

Chemical stability, acid and alkali corrosion resistance, and oxidation resistance are all strengths.

A large filter area

In accordance with food hygiene and pharmaceutical GHP criteria, there is no particle shedding and no secondary polluting of the original solution.

Products Application

Water Treatment: The filter element is employed in water treatment systems to effectively remove sediments, suspended solids, bacteria, and other impurities from water sources. It helps in providing clean and safe drinking water.

Oil and Gas Industry: The filter element is utilized in oil and gas production processes to separate solid particles, rust, and other contaminants from fluids. It ensures the smooth operation of equipment and prevents damage caused by impurities.

Pharmaceutical Industry: The filter element plays a critical role in pharmaceutical manufacturing, where it is used to filter and sterilize liquids, gases, and air. It helps maintain the integrity and purity of pharmaceutical products.

Food and Beverage Processing: In food and beverage production, the filter element is employed to remove particles, sediment, and impurities from liquids such as juices, syrups, and sauces. It aids in maintaining product quality and ensuring food safety.

Petrochemical Industry: The filter element is used in petrochemical plants to filter and purify various fluids and gases, such as refining catalysts, hydrogen, and process water. It helps in maintaining the efficiency and reliability of petrochemical processes.

Electronics and Semiconductor Manufacturing: The filter element is utilized in the electronics and semiconductor industry for the filtration of ultrapure water, chemicals, and gases. It assists in achieving high-quality and contamination-free manufacturing processes.
