TOPTITECH's 0.5mm Thickness Porous Titanium felt-plate Composition Sheet represents an advanced composite material engineered for high-efficiency gas diffusion layers in hydrogen electrolyzers. This hybrid structure integrates sintered titanium fiber felt with porous titanium plate through precision diffusion bonding, achieving optimal porosity gradients and interfacial conductivity. The titanium felt side facilitates turbulent gas flow distribution while maintaining low electrical contact resistance, whereas the sintered porous plate side provides mechanical stability and controlled permeability. Its unique dual-phase architecture ensures uniform current density distribution across the electrode surface, critical for preventing hot spot formation during prolonged PEM electrolysis operations.

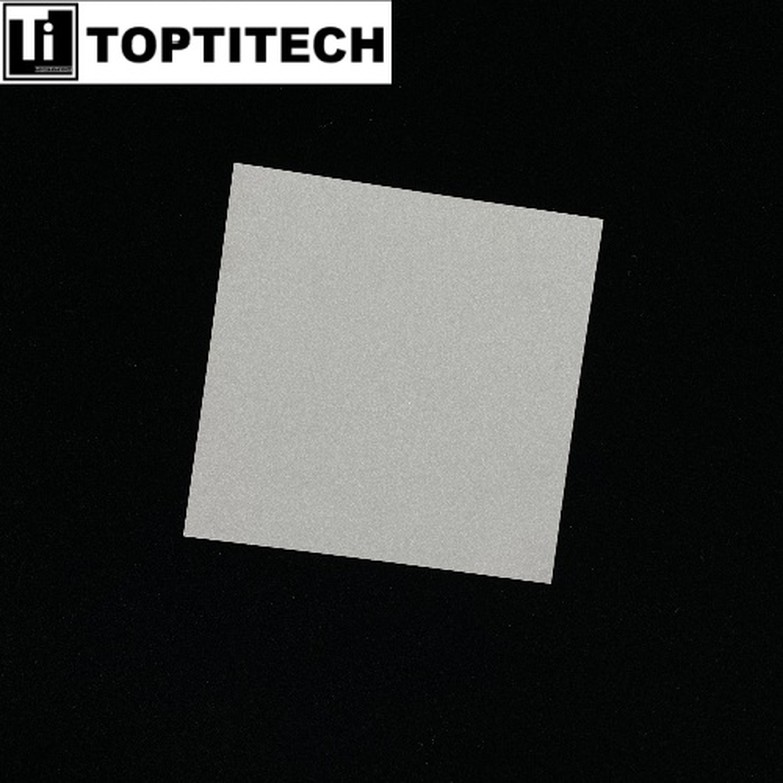

05mm Thickness Porous Titanium felt-plate Composition Sheet 6

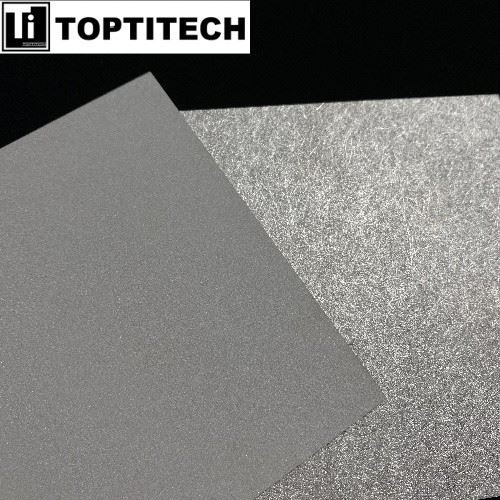

Porous titanium plate side

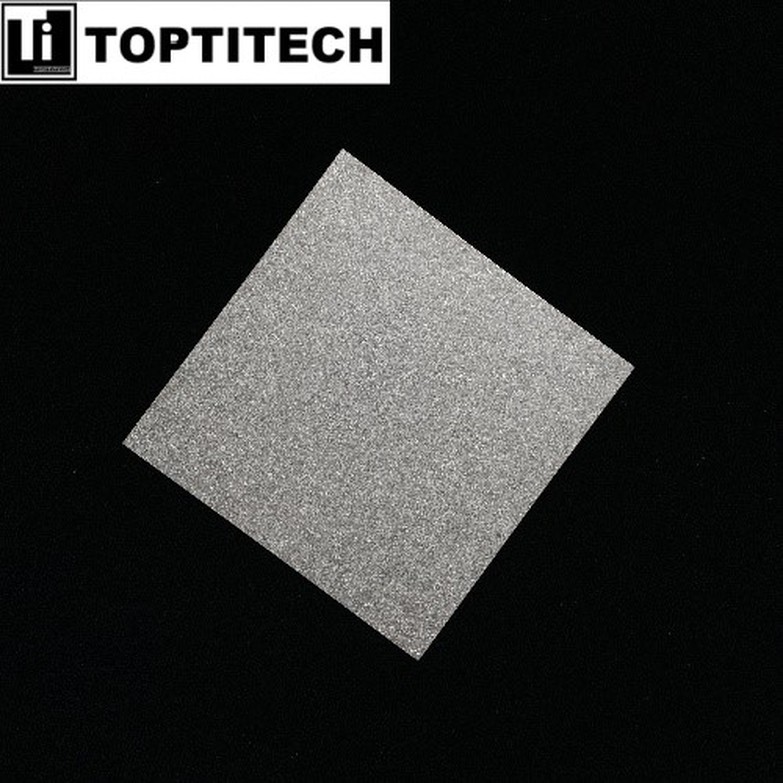

Titnaium felt side

Designed specifically for oxygen evolution reaction environments, the 0.5mm Thickness Porous Titanium felt-plate Composition Sheet exhibits exceptional corrosion resistance against acidic anodic conditions. The sintered titanium matrix minimizes ionic transport losses while the interconnected pore network enhances bubble detachment kinetics. This configuration demonstrates superior performance over conventional carbon-based diffusion layers by eliminating oxidative degradation risks. Plasma-sprayed platinum coatings can be optionally applied to further enhance catalytic activity and long-term durability in demanding electrolyzer stack configurations.

Products Specifications

Material	GR1 titanium

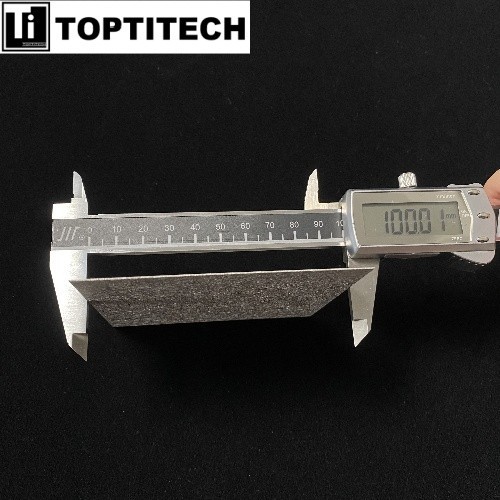

Size	100*100mm

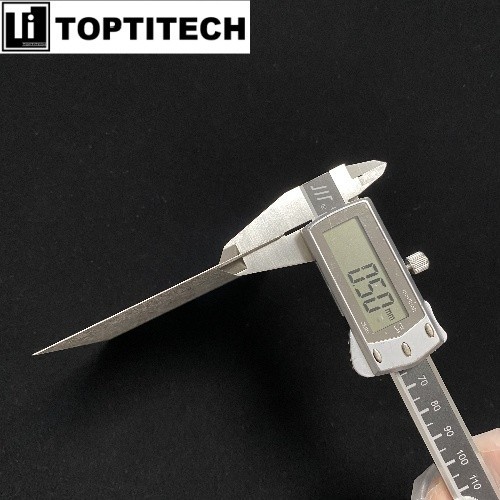

Whole thickness	0.5mm
Porous titanium plate thickness	0.25mm
Titanium fiber felt thickness	0.25mm
Working temperature	300℃
Technique	Sintering

Products Features

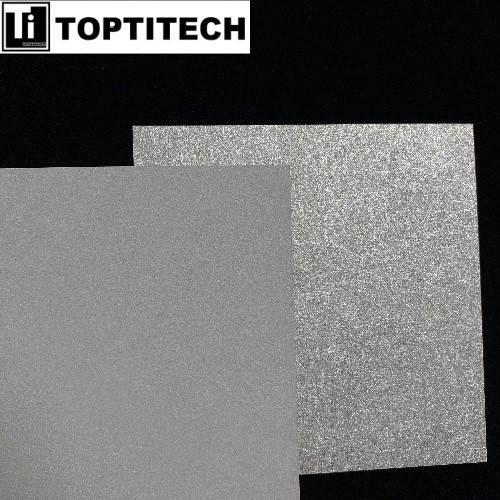

05mm Thickness Porous Titanium felt-plate Composition Sheet 2

Bipolar Conductivity Optimization

While the fiber felt layer optimizes interfacial contact with catalyst coatings and lowers charge transfer resistance across the electrode-electrolyte boundary layer, the sintered titanium plate substrate guarantees uniform current distribution.

Oxidation-Resistant Anode Performance

Unlike carbon-based materials, the monolithic titanium structure withstands high-potential oxygen evolution environments without corrosive degradation or dimensional instability.

Enhanced Mass Transport Dynamics

Graded porosity between the dense sintered plate and fibrous layer accelerates bubble detachment and electrolyte diffusion, critical for maintaining steady-state electrolyzer operation.

05mm Thickness Porous Titanium felt-plate Composition Sheet 1

Mechanical-thermal Stability

Diffusion-bonded interfaces prevent delamination during thermal cycling, while the titanium matrix maintains structural integrity under compressive stack assembly forces.

Surface Modification Readiness

The open-fiber network readily accepts plasma-sprayed platinum or iridium oxide coatings for catalytic activation without compromising base material porosity.

applications

Siemens delivers PEM electrolyzer for Salzgitter AG | Press | Company | Siemens

PEM Electrolyzer Stacks‌

Functions as an integrated gas diffusion electrode (GDE) in proton exchange membrane systems, where its corrosion-resistant titanium matrix replaces traditional carbon substrates on the oxygen-evolving anode side. The composite construction controls gaseous product outflow and liquid electrolyte penetration at the same time.

Alkaline Water Electrolysis Upgrades‌

Serves as a durable alternative to nickel meshes in advanced alkaline electrolyzers, with the sintered plate side providing mechanical reinforcement against potassium hydroxide immersion while the felt layer improves bubble release efficiency.

Solid Oxide Electrolyzer Cells (SOEC)‌

Adaptable as an interconnect component in high-temperature electrolysis configurations, where its thermal expansion compatibility and oxidation stability outperform ferritic stainless steel alternatives.

Chlor-Alkali Membrane Cells‌

Demonstrates exceptional chlorine resistance when deployed as electrode substrates in brine electrolysis applications, maintaining dimensional stability under aggressive anodic conditions.

Fuel Cell System Integration‌

Reversible operation capability allows cross-application in PEM fuel cell assemblies, particularly effective as cathode-side diffusion media where water management is critical.

Electrochemical Synthesis Reactors‌

Supports specialized processes like organic electrosynthesis and CO₂ reduction, where the material's purity prevents catalytic poisoning compared to conventional metal foams.
