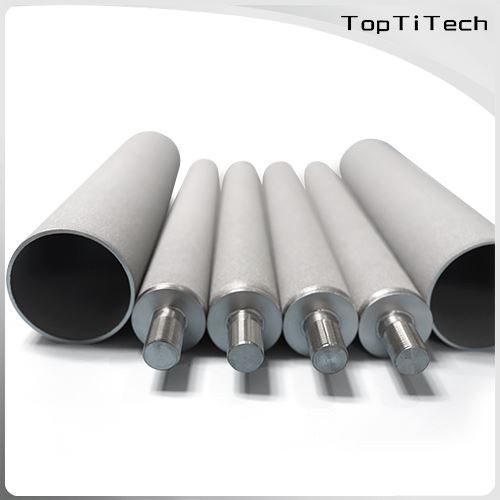

Sintered porous Titanium Rod Filter Gas purification

Titanium rod filter element is a kind of porous filter element, which is made of industrial high-

purity titanium, after sieving, cooling, and isostatic pressing, and then sintered at high temperature

and high vacuum, and make the final production.

Technical Parameters

Production Name: Titanium Rod Filter

Filtration precision: 0.65um-100um

Porosity: 28-50%

Air permeability: 0.02-20M3cm/m2h.mmH2O

Compressive strength: 0.5-1.5Mpa

Temperature resistance: 280℃ (wet state)

Maximum working pressure difference: 0.6Mpa

Diameter: Φ30mm Φ50mm Φ60mm

Length: 5 inches 10 inches 20 inches 30 inches 40 inches

Interface form: M20 interface,M30 interface

and Customized according to customer requirements

Features

1. Uniform structure, narrow pore size distribution, and high separation efficiency.

2. High porosity, low filtration resistance, and high penetration efficiency.

3. High-temperature resistance, generally can be used normally under 280 degrees.

4. Good chemical stability, acid, and alkali corrosion resistance, and oxidation resistance.

5. No particles fall off, do not cause secondary pollution of the original solution, and meet the requirements of food hygiene and pharmaceutical GHP.

6. Good mechanical properties can be press-filtered or suction-filtered, and the operation is simple.

7. Low differential pressure, small footprint, and large flow.

8. It has a strong anti-microbial ability and does not interact with microorganisms.

9. The forming process is good, and the overall length without welding can reach 1000 mm.

10. It can be regenerated online, is easy to clean, and has a long service life (usually several times that of the membrane filter element).

Application

1. Decarbonization filtration in the concentrated distribution of large infusions, small injections, eye drops, and oral liquids in the pharmaceutical industry and security filtration before terminal filtration in the diluted distribution.

2. Impurity removal filtration, decarbonization filtration, and fine filtration of materials in the production process of raw materials.

3. Ultrafiltration, RO, EDI system security filtration in the water treatment industry, filtration after ozone sterilization, and ozone aeration.

4. Clarification and filtration of beverages, liquor, beer, vegetable oil, mineral water, soy sauce, and vinegar in food and beverages.

5. Decarbonization filtration and precision filtration of liquid products, liquid raw materials, and pharmaceutical intermediates in the chemical industry, filtration and recovery of ultrafine bodies and catalysts, precision filtration after resin adsorption, and impurity removal filtration of system heat transfer oil and materials, catalysis Air purification, etc.

Package and Shipment

Shipment:

Deliver by EMS,DHL,UPS,FedEx etc.

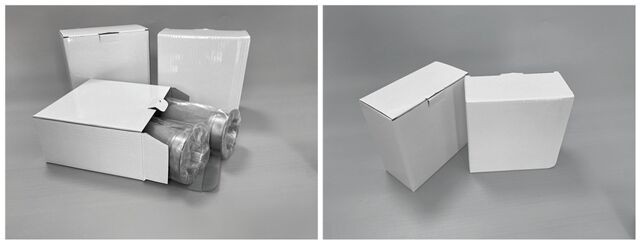

Package:

The inner packaging is weightless plastic paper and foam so that the product will not be bumped; the outer packaging is a carton packaging without any logo.

About us

We have our own factory, covering an area of 1000 square meters, with advanced machining equipment: lathes, milling machines, grinders, shearing machines, etc., to meet the needs of different customers for products.

TopTiTechis located in the east area of Baoji High-tech Industrial Development Zone, which is known as "China Titanium Valley", with convenient transportation and a beautiful environment. Founded in 2011, the company has the latest and most advanced production equipment and rich production experience, providing long-term related

products and services for many large state-owned enterprises.

If you can not find the product that you want to make an order for, please give us the details below!

We will send you the product details and quotation.

1. Material: tungsten, titanium alloy, titanium rod filter, porous titanium sheet, etc.

2. Form: plate, sheet, bar, rod, tube, wire, etc.

3. Dimension: thickness, width, length, or diameter.

4. If you can supply the quantity and use and standard, it's better for supplying a quotation ASAP.

Thanks.
