Name: Stainless Steel Powder Sintered Filter Element Reusable Customized Suppliers, Manufacturers - Free Sample - TOPTITECH Metal Materials
Brand: TOPTITECH
SKU: 185876357

The Stainless Steel Powder Sintered Filter Element Reusable is a highly effective filter that is crafted from stainless steel powder using a specialized production process. This process involves powder screening, mold pressing, high-temperature, high-pressure vacuum sintering, cooling, and integral molding into a single unit. A porous metal sintered filter element with a wide range of filtering precision can be created by modifying the powder particle size and process parameters.

The Stainless Steel Powder Sintered Filter Element Reusable achieves micron-level precision filtration, effectively separating solid particles and impurities from liquids and gases. As fluid flows through the filter element with a certain precision, impurities are trapped on the surface of the filter element, forming a filter cake, while pure fluid flows out through the filter element. This ensures that contaminated or impurity-containing fluids are cleaned to the state required for normal production, protecting downstream devices and ensuring pure products are obtained.

_20220830092540

The stainless steel powder sintered filter tube from TopTiTech

The stainless steel powder sintered filter element from TopTiTech also has excellent mechanical properties, can be machined such as cutting and welding and has high compressive strength. The filtration accuracy can be guaranteed, even if it works under high temperature and high pressure, the pore size will not be deformed, and the porosity can reach 35-50%. And the pore size distribution is uniform, the dirt holding capacity is large, the back cleaning is easy, the regeneration ability is strong, and the service life is long. Due to the many advantages of porous metal powder sintered materials, such products are widely used in catalyst recovery, gas-liquid filtration and separation in chemical, pharmaceutical, beverage, food, metallurgy, petroleum, environmental protection fermentation and other fields; various gases, Dust removal, sterilization, and oil mist removal of steam; noise reduction, flame retardation, gas buffering, etc.

Product Parameters

Brand	Origin	Porosity	Filtration precision	Use temperature	Internal pressure	Material
TopTiTech	China	35-50%	0.2—100um	≤600℃	3mpa	316L
Shape	tube, plate, sheet, disc, ring, rod, cone, and plate, strip (customized according to customer needs)

Product Features

(1) High-temperature resistance, with regular use temperatures below 600 °C.

(2) High mechanical strength, good plasticity, and can be machined.

(3) Corrosion resistance, and oxidation resistance, can be used in various extreme environments.

(4) The molding process is good, and it can be processed at one time according to the customer's drawings.

(5) High filtration precision and effective purification.

(6) The pores are uniform, the internal structure is stable, and no particles fall off.

(7) Good air permeability, easy to backflush and clean, and can be regenerated and used repeatedly on-line.

(8) Wear-resistant and impact-resistant, with good mechanical properties.

Product Details

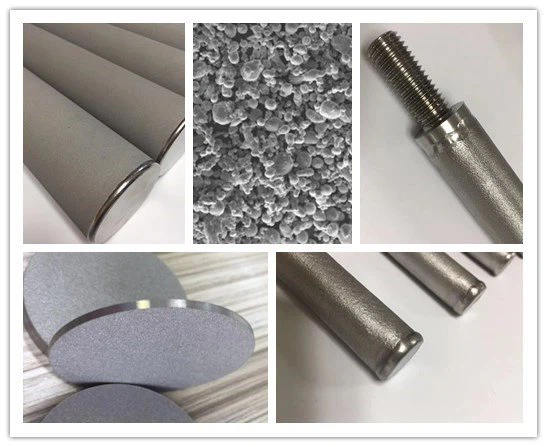

initpintu_

Fine powder, smooth surface, exquisite workmanship, seamless welding, firm, beautiful and airtight

Product Application
· Removal of dust, germs, and oil fog from gas and steam.

· Noise reduction, gas buffer.

· The recycling of catalysts.

· Decarburization filtration.

· Viscous liquid filtration.

· Strong polar solvent filtration.

· Particle retention from fluidized bed off-gas.

· Pharmaceutical, beverage, food, metallurgy, petroleum, and other industries use filtration and separation.

Other forms of stainless steel powder sintered filter elements from TopTiTech

Sintered stainless steel powder filter elements can be made into tube type and plate type.

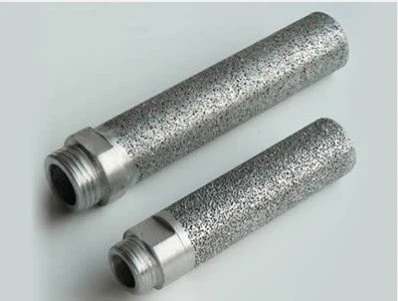

Sintered stainless steel powder filter element

Stainless steel screw components

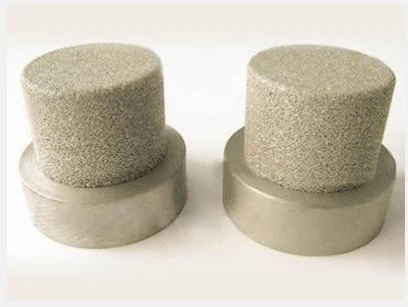

The cylindrical stainless steel sintered fiber elements

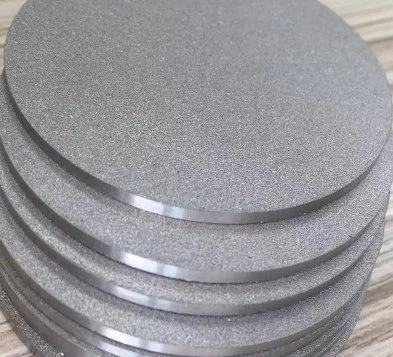

sintered stainless steel powder filter discs

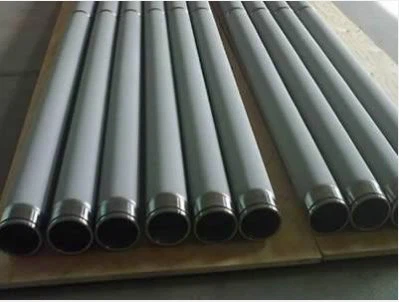

sintered stainless steel powder filter tubes

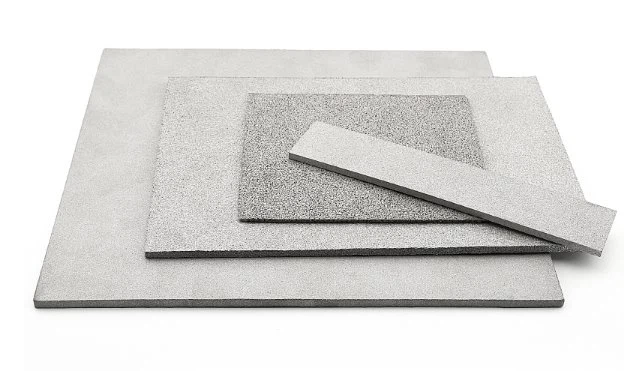

sintered stainless steel powder filter sheet

Contact

TopTiTech is a Chinese manufacturer professional in making stainless steel powder sintered filter elements and other mental powder sintered filter elements, if you have some interest in the products, please feel free to contact us:
