The Titanium Mesh for PEM Electrolyzer Support Layer is a cutting-edge solution designed to optimize the performance and durability of Proton Exchange Membrane (PEM) electrolyzers. Crafted with GR1 high-quality titanium, this mesh serves as a crucial component in the support layer, enabling efficient and reliable hydrogen production. With its exceptional properties and precise engineering, the Titanium Mesh for PEM Electrolyzer Support Layer offers unmatched benefits for a wide range of applications.

Maximize the performance of your PEM electrolyzer with the Titanium Mesh for the PEM Electrolyzer Support Layer. Its excellent electrical conductivity facilitates optimal current distribution, ensuring efficient and uniform hydrogen gas production. The precisely engineered mesh structure not only provides mechanical strength but also enables efficient gas and liquid flow distribution within the electrolyzer. Moreover, the mesh pattern offers a large surface area, promoting better contact between the electrolyte and the catalyst, thereby enhancing electrochemical reactions and overall hydrogen production efficiency.

Products Specifications

Material	GR1 titanium
Pore size	3*6mm
Thickness	1mm
Size	Customized by the drawings
Technique	Expanded

Why use titanium mesh as a support layer in the PEM electrolyzer?

In a PEM (Proton Exchange Membrane) electrolyzer, titanium mesh is utilized as a support layer for several reasons that contribute to its significance:

1. Superior Corrosion Resistance: Titanium is a highly corrosion-resistant metal, making it well-suited for the demanding chemical environments typically found in PEM electrolyzers. The use of titanium mesh as a support layer ensures long-term stability and reliability, even in highly acidic or alkaline conditions.

2. Excellent Conductivity: Titanium mesh exhibits excellent electrical conductivity, facilitating efficient current distribution within the electrolyzer. This enables uniform hydrogen gas production and enhances overall electrolyzer performance.

3. Adaptability and Customizability: Titanium mesh can be customized to meet the specific design and size requirements of different PEM electrolyzer configurations. Its shape and dimensions can be tailored to fit various applications, offering adaptability and flexibility in system integration.

4. Lightweight Construction: Titanium is a lightweight metal, contributing to reduced weight in the electrolyzer system. This not only improves overall system efficiency but also facilitates transportation and installation.

5. Increased Surface Area: The mesh pattern of the titanium support layer provides a large surface area, promoting better contact between the electrolyte and the catalyst. This enhanced surface area facilitates efficient electrochemical reactions, leading to improved hydrogen production efficiency.

Why titanium expanded mesh is more suitable than titanium woven mesh used as a support layer in the PEM electrolyzer?

There are several reasons why titanium expanded mesh is more suitable than titanium woven mesh for use as a support layer:

Titanium expanded mesh

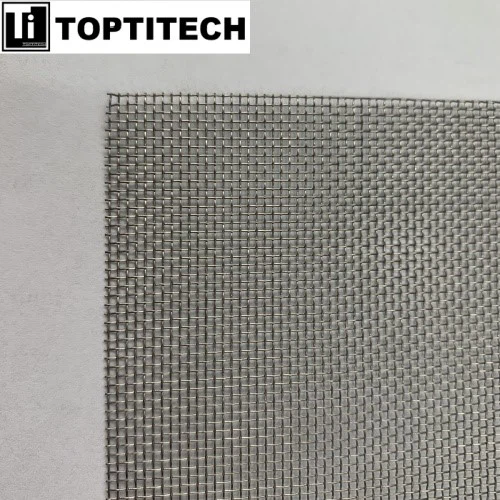

Titanium woven mesh

Enhanced Mechanical Strength: Titanium expanded mesh possesses higher mechanical strength compared to titanium woven mesh. The expanded mesh is manufactured through a process of stretching and slitting, resulting in a mesh with interconnected strands. This structure provides improved load-bearing capacity and resistance to deformation, making it ideal for supporting the components within a PEM electrolyzer.
Uniform Openings: The expanded mesh has uniform and consistent openings throughout its surface. This ensures consistent gas and liquid flow distribution within the electrolyzer, allowing for efficient mass transfer and reaction kinetics. In contrast, woven mesh may have irregular openings, leading to uneven flow patterns and potential performance issues.
Flexibility and Customization: Titanium expanded mesh offers greater flexibility and customization options. It can be easily tailored to specific design requirements, such as shape, size, and open area ratio. This adaptability allows for precise integration into different PEM electrolyzer configurations, ensuring optimal support and functionality.
Reduced Risk of Contamination: The manufacturing process of titanium expanded mesh involves slitting and stretching, which eliminates the need for welding or interweaving. This reduces the risk of contaminants, such as weld debris or weaving materials, that could potentially affect the purity of the hydrogen produced in the electrolyzer.
Enhanced Durability: Due to its interconnected structure and higher mechanical strength, titanium expanded mesh exhibits improved durability and resistance to wear and tear. It can withstand the demanding conditions and cyclic loading associated with PEM electrolyzer operation, resulting in longer service life and reduced maintenance requirements.
In summary, titanium expanded mesh is more suitable as a support layer in PEM electrolyzers due to its enhanced mechanical strength, uniform openings, flexibility, reduced risk of contamination, and improved durability. These characteristics contribute to the efficient and reliable operation of the electrolyzer system, supporting optimal hydrogen production for various applications in clean energy systems.
