Name: Gr2 Square Titanium Forged Block Customized Suppliers, Manufacturers - Free Sample - TOPTITECH Metal Materials
Brand: TOPTITECH
SKU: 179978733

Production Name: Gr2 Square Titanium Forged Block

Material: Pure titanium

Grade: GR2

Condition: Annealed

Surface: Pickled, Polished, or Sand Blasted

Mould Number: Titanium Block

HS Code: 8108909000

Size:
Titanium forged block is squares or rectangles up to 1200mm in width

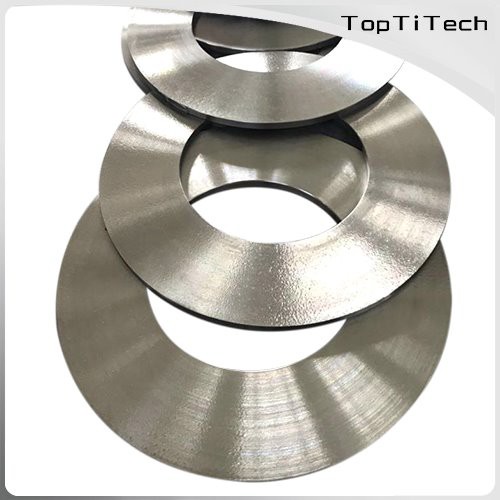

Titanium forged ring is available from 200 to 300mm in diameter

Titanium forged disc up to 2800kg per piece.

Titanium forged shaft is available from 30 to 400mm in diameter.

Standard:

ASTM B381

TYPE of Titanium Block
Flange, Ring, Block, Disc, Billet, Slab

Applications of Titanium Block:

Titanium and titanium alloy forgings are machined to flanges for pipe collection, equipment assembly, valve components, undersea seals, and tools.

STANDARD	CHEMICAL COMPOSITION (weight %, max or range)	MECHANICAL PROPERTIES (min)
ASTM B381	UNS No	N	C	H	Fe	O	Al	V	Pd	Mo	Ni	Tensile	Yield	El.	Red.
Mpa	Mpa	%	%
GR 1	R50250	0.03	0.08	0.015	0.2	0.18						240	138	24	30
GR 2	R50400	0.03	0.08	0.015	0.3	0.25						345	275	20	30
GR 3	R50550	0.05	0.08	0.015	0.3	0.35						450	380	18	30
GR 4	R50700	0.05	0.08	0.015	0.5	0.4						550	483	15	25
GR 5	R56400	0.05	0.08	0.015	0.4	0.2	5.5-6.75	3.5-4.5				895	828	10	25
GR 7	R52400	0.03	0.08	0.015	0.3	0.25			0.12-0.25			345	275	20	30
GR 9	R56320	0.03	0.08	0.015	0.25	0.15	2.5-3.5	2.0-3.0				620	483	15	25
GR 12	R53400	0.03	0.08	0.015	0.3	0.25				0.2-0.4	0.6-0.9	483	345	18	25
GR 23	R56401	0.03	0.08	0.0125	0.25	0.13	5.5-6.5	3.5-4.5				828	759	10	15

Our Machines:

About us:

Our main products are Sintering Titanium Powder Filter, Titanium Sintered Filter Sheet, Titanium Fiber Felt, Titanium Foil, Titanium Anode, Titanium Aeration Head, and so on.

Our production also has been widely used in the Petrochemical industry, Aviation and Aerospace industry, Medical industry, Food industry, etc.

Why Choose us?

1. Quality advantage

Baoji Yinggao Metal Material Co., Ltd. is located in the center of "China Titanium Valley". It has been supplying in stock for many years. Titanium porous titanium sheet factory

production, raw material: titanium powder materials, and porous titanium sheet and porous titanium filter or stainless steel filter in line with international standards.

2. Equipment advantages

Complete supporting equipment, the introduction of the industry's top roller drawing equipment,

3. Technical advantages

Focus on porous titanium sintering materials for more than 11 years, master the domestic first-class porous titanium technology

4. Product advantages

We can provide samples that can be processed and customized according to the drawings.
