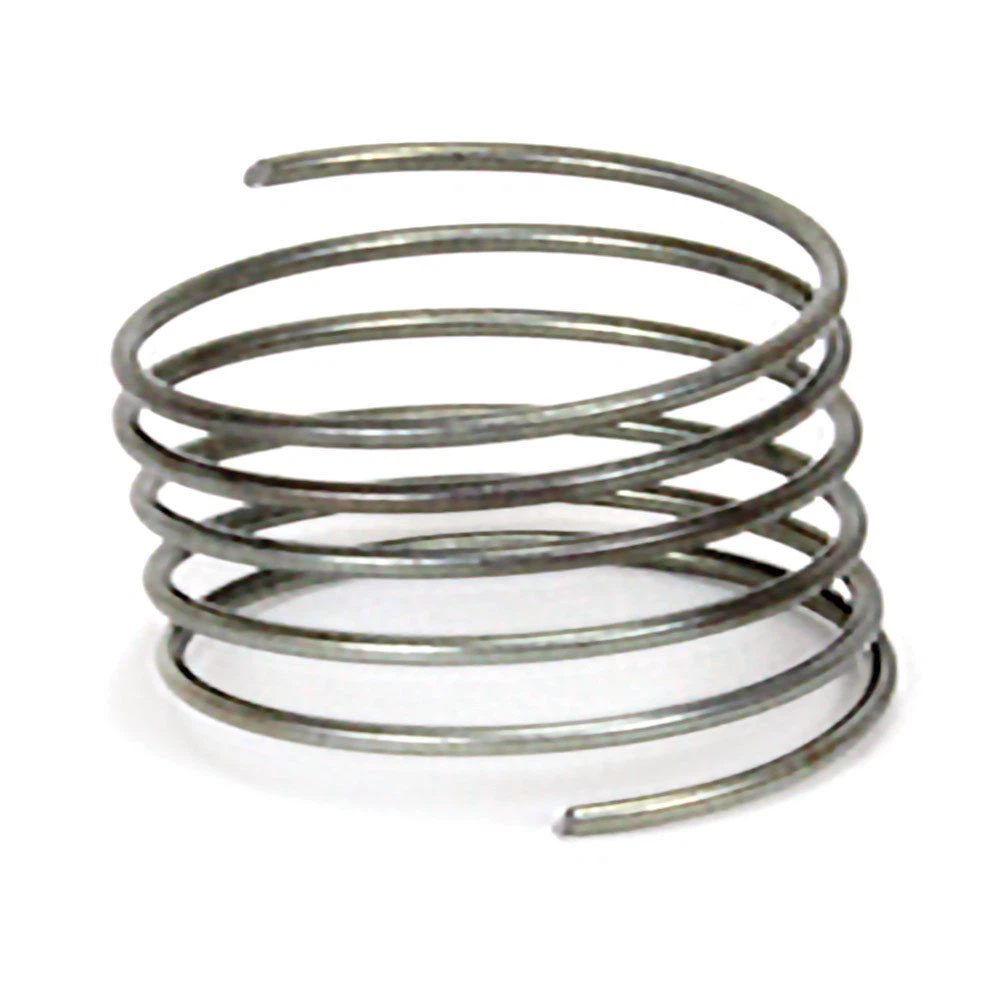

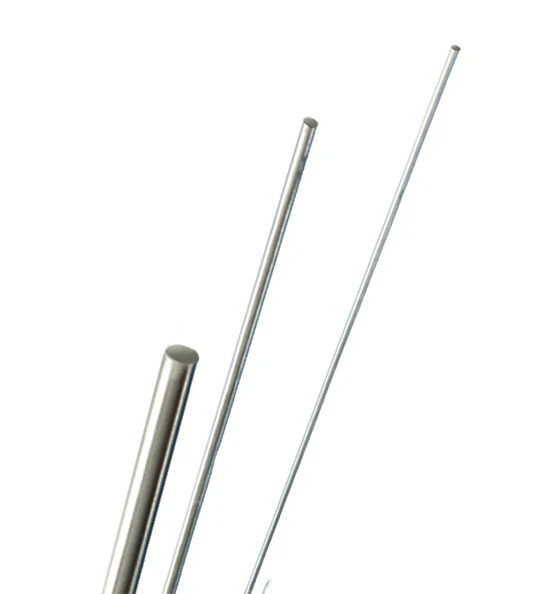

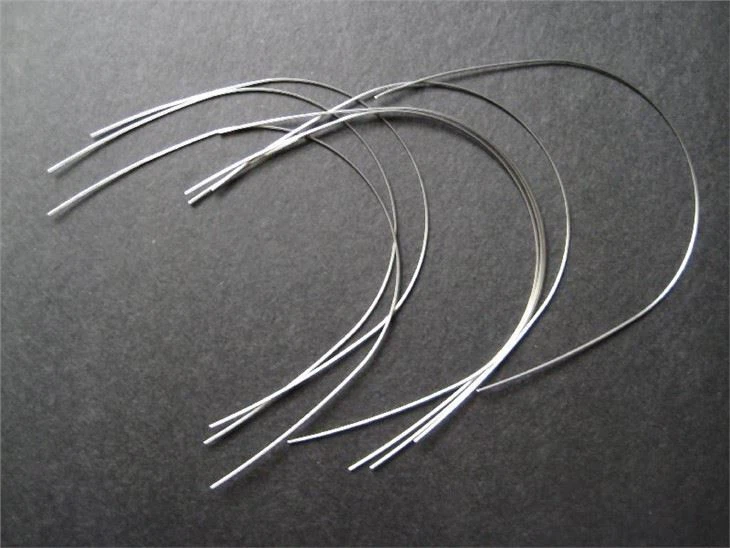

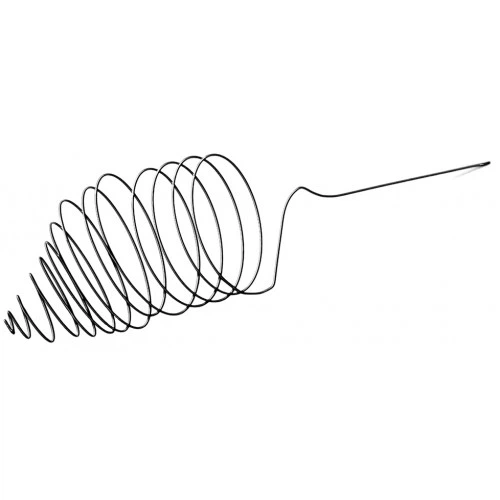

Nitinol Alloys Wire

Ni-Ti Alloy shape memory material is a special material that integrates sensing and actuation. Nitinol shape memory alloy is an important part of Nitinol shape memory material. Nickel-titanium shape memory alloy is an alloy whose shape is transformed into another shape in a certain initial state after plastic deformation at low temperature.

Properties of Nitinol Alloys Wire

(1) Shape memory

After certain heat treatment, the shape of NiTi shape memory alloy can be recovered automatically. This change is the shape memory property of Nitinol shape memory alloys. Shape memory can be divided into one-way shape memory, two-way shape memory, and overall shape memory according to the recovery state.

(2) Hyperelasticity

The superelasticity of NiTi shape memory alloy is that under the action of external force, the NiTi shape memory alloy is deformed, and the superelasticity of NiTi shape memory alloy returns to its original state after the external force is removed. The superelastic deformation of NiTi shape memory alloy will directly lead to the martensitic transformation, while the reverse martensitic transformation will occur when the external force is removed.

(3) Damping

NiTi shape memory alloys (SMAS) have good damping properties due to the self-tuning of the phase transition and the interfaces and motions generated during the phase transition.

(4) Resistance

The resistance of martensitic nickel-titanium shape memory alloys has a linear relationship with the strain during deformation. When transformation occurs, the slope of the curve decreases but maintains a linear relationship before and after martensitic transformation.

two. The role of nickel-titanium shape memory alloys.

Nitinol shape memory alloys (SMAS) have been widely used in many fields due to their unique functions, superelasticity, wear resistance, and corrosion resistance.

(1) Mechanical Engineering

Nickel-titanium shape memory alloys (SMAS) were first used in the mechanical industry for pipe joints and fasteners. Specifically, at the joints of mechanical parts, pipes, etc., when the aircraft is refueled in the air, the Niti shape memory alloy is used for processing the casing whose outer diameter is 3% larger than the inner diameter. At a certain temperature, the expansion rate of the casing is about 8 %. During assembly, the housing was removed from the liquid nitrogen and inserted from both ends. If the temperature rises to the normal temperature, the temperature can be changed by electric heating. The shape memory alloy of the nickel-titanium alloy of the fuel filler is deformed, and the casing made of the shape-memory alloy of nickel-titanium alloy shrinks to form a tight seal, which realizes tight oil leakage, which is much better than traditional welding. Therefore, nickel-titanium shape memory alloys are especially suitable for aerospace, ships, oil pipelines, and other fields. Where construction is inconvenient, the pins can be made of Nitinol shape memory alloy and heated inside the hole. Therefore, nickel-titanium shape memory alloys are used to drive various functions to make robots, manipulators, etc.

(2) Construction industry

As mentioned above, Nitinol shape memory alloys have a variety of properties. Combined with the structure of Nitinol shape memory alloy, the damping of the system can be improved and the dynamic response of the structure can be reduced, so as to manufacture various types of damping energy dissipation devices. Isolators are also available in Nitinol shape memory alloy designs. The deformation of NiTi shape memory alloy can increase the energy dissipation of deformation displacement and prevent the transmission of seismic energy to the upper structure, thereby protecting the upper structure and truly improving the seismic performance of the structure.

(3) Aerospace industry

In aircraft hydraulic systems, nearly every aircraft requires the use of 800 Nitinol shape memory alloy joints. Most U.S. Navy aircraft have used this fitting since the 1970s and have no record of failures. In addition, NiTi shape memory alloys can also be used in spacecraft antennas, electromechanical actuators, etc.

(4) Automobile industry

Nickel-titanium shape memory alloys are mainly used in engine exhaust fan clutches, exhaust nozzles, diesel engine radiators, etc.

(5) Medical field

Nitinol shape memory alloys have high mechanical properties and biocompatibility and have been widely used in the medical field. Such as orthodontics, surgery, minimally invasive cardiovascular, etc.; thrombus filter is actually a new product of nickel-titanium alloy shape memory alloy; the corrected filter gradually forms a network with the passage of implantation time.

Package and Shipments:

Packaging & Shipping

Packing: wooden case, normal packing, as customer request

Shipping: DHL, FedEx, UPS, air shipping, or sea shipping

About us

Topti Tech is one factory that has more than 11 years of experience in porous titanium materials, it has a QC team, a Sales team, and Research and Development team, and our company has passed the ISO 9001-2015 certification. We are a typical China supplier. We are professionally exporting under the standards of ASTM, GB, and AMS, as well as nonstandard porous titanium materials. Now we have gained close cooperation with clients from Europe, Iran, Europe, America, Korea, India, and Top Tech won good comments and suggestions from all of our users in different industries.

Our main products are Sintering Titanium Powder Filter, Titanium Sintered Filter Sheet, Titanium Fiber Felt, Titanium Foil, Titanium Anode, Titanium Aeration Head, Porous Sintered Titanium Filter Tube, Stainless Steel Powder Sintered Filter Tube, Stainless Steel Sintered Wire Mesh, and so on.

Our production also has been widely used in the Petrochemical industry, Aviation and Aerospace industry, Medical industry, Food industry, etc.

We appreciate your interest in our company very much and hope that our website will be helpful and informative to you. If you need more information, please contact our sales department

Kindly don't hesitate to get in touch with me, If you're interested in our products. you can check it: www.toptitech.com.

FAQ

1. Q: How long is your delivery time?

A: If it's available, it's usually 3-5 days. If the goods are out of stock, 7-15days. Customize the special needs, renegotiate the construction period, and deliver the goods as soon as possible.

2. Q: What are your terms of payment?

A: Up to $1000, 100% in advance. Payment > US $1000, 30% telegraphic transfer in advance, the balance paid before delivery.

3. Q: How do you guarantee the quality?

A: we'll send someone to deliver the products with the factory certificate.

And if necessary, we can also conduct third-party inspections of the products.
