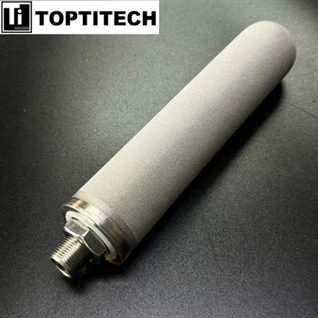

φ20mm Titanium Rod Filter Cartridge For Oilfield Re-injection Water

TOPTITECH's φ20mm titanium rod filter cartridge is a sintered porous metal filtration solution engineered for oilfield re-injection water systems and low-permeability reservoir protection. Manufactured from industrial high-purity titanium powder (≥99.6%) through cold isostatic pressing and high-temperature vacuum sintering, this backwashable sintered titanium filter delivers absolute filtration ratings from 0.2μm to 100μm with a porosity of 30-40% and uniform pore size distribution. The titanium powder filter element exhibits corrosion resistance against high-salinity brines, chlorides, and acidic/alkaline injection fluids-conditions where 316L stainless steel filters fail within months. Rated for operating temperatures up to 280℃ and maximum differential pressure of 0.6MPa, this porous metal filter cartridge withstands the cyclic loads and high-pressure backflushing regimes typical in produced water treatment. Each sintered titanium rod filter ensures zero particle shedding, non-magnetic properties, and full compliance with GMP standards, eliminating secondary contamination risks to subsurface formations.

Oilfield operators rely on this sintered titanium powder filter for re-injection water polishing, where suspended solids, oil droplets, and fines must be reduced to below 2mg/L for low-permeability injection wells. The microporous titanium filter element achieves deep filtration through a three-dimensional interconnected pore network-particles larger than the rated micron rating are mechanically retained on the filter surface, while smaller particulates become trapped within the tortuous pore channels. A reverse flushing cleaning process at 0.3MPa backpressure restores the porous titanium rod filter to near-original permeability, delivering 3+ years service life under normal operating conditions. Common applications include oil sands separation, seawater desalination pre-treatment security filtration upstream of RO systems, and filtration after ozone disinfection in water recycling loops. The φ20mm diameter allows multi-cartridge assemblies within compact filter housings, scaling from single-core laboratory units to multi-core skids processing thousands of barrels per day. For enhanced oil recovery (EOR) projects where injection water quality directly impacts sweep efficiency, this titanium sintered filter cartridge provides the chemical stability, thermal resistance, and mechanical strength that polymer-based or ceramic alternatives cannot match.

Extreme corrosion resistance against high-salinity brines & chlorides

The φ20mm titanium rod filter cartridge for oilfield re-injection water is manufactured from high-purity titanium powder (≥99.6%) via cold isostatic pressing and high-temperature vacuum sintering. This titanium sintered filter withstands H₂S, CO₂, chlorides, and acidic/alkaline injection fluids that rapidly degrade 316L stainless steel filters. No pitting or crevice corrosion even after prolonged exposure to produced water with high total dissolved solids.

Absolute filtration ratings from 0.2μm to 100μm with uniform pore structure

The sintered porous metal filter delivers consistent particle removal down to 0.2μm absolute rating. Porosity reaches 30-40% with three-dimensional interconnected pore channels, enabling deep filtration while maintaining high flow rates. Microporous titanium filter eliminates suspended solids and oil droplets to below 2mg/L, meeting low-permeability reservoir injection standards.

Backwashable design restores 90%+ filtration performance after regeneration

Unlike disposable depth filters, this sintered titanium filter element undergoes reverse flushing cleaning at 0.3MPa backpressure to dislodge trapped solids from the porous structure. High dirt-holding capacity allows extended service intervals between cleaning cycles, delivering 3+ years of operational life under normal injection water conditions.

Zero particle shedding with non-toxic, non-magnetic construction

The porous titanium rod filter produces no media migration or fiber release during operation. GR1 pure titanium material eliminates secondary contamination risks to subsurface formations and complies fully with GMP certification standards.

1. Oilfield produced water re-injection & low-permeability reservoir protection.

The φ20mm titanium rod filter cartridge for oilfield re-injection water removes suspended solids, oil droplets, and fines to below 2mg/L before injection into low-permeability reservoirs. Backwashable sintered titanium filter prevents formation plugging in enhanced oil recovery (EOR) projects where injection water quality directly impacts sweep efficiency.

2. Security filtration before reverse osmosis & seawater desalination. Sintered porous metal filter cartridge installs upstream of RO membranes to remove marine impurities and protect downstream equipment from particulate damage. Titanium powder filter element withstands chloride-rich seawater environments where stainless steel alternatives rapidly degrade.

3. Ozone aeration, post-sterilization filtration & advanced water treatment.

Microporous titanium filter functions as ozone diffusion plate and fine filtration stage after ozone disinfection in wastewater treatment plants. Sintered titanium porous cartridge achieves 85% ozone absorption rate in printing film wastewater, organic dye wastewater, oil refinery effluent, and hospital sewage treatment.

4. High-temperature decarburization & white clay filtration in chemical processing.

Titanium sintered filter element removes activated carbon and bleaching earth from high-viscosity process streams. Porous titanium rod filter handles nitric acid, sulfuric acid, acetic acid, phosphoric acid, and 5% hydrochloric acid environments where polymer-based filters fail.

5. Catalyst recovery & polymer melt filtration in petrochemical plants. Solid catalyst recovery from slurry oil and other petrochemical products relies on the backwashable sintered metal filter's high dirt-holding capacity. Titanium powder sintered filter cartridge operates at temperatures up to 280℃ and differential pressures up to 0.6MPa in refinery and chemical plant processes.

6. API purification, decarbonization & fermentation broth sterilization in pharmaceutical production.

Porous titanium filter element serves as a decarbonation filter for IV solutions, small-volume injections, oral liquids, and API manufacturing. Sintered titanium rod cartridge meets GMP standards with zero particle shedding, non-toxic construction, and compatibility with steam-in-place sterilization cycles.

7. Food & beverage clarification – beer, wine, edible oil, and beverage filtration.

Titanium sintered rod filter clarifies fermentation broths, mineral water, vegetable oils, and spirits while serving as aerated diffusion medium for carbonated beverages. Microporous titanium filter cartridge handles ozone-containing gas mixtures for fish hatchery disinfection and agro-industrial aeration applications.
