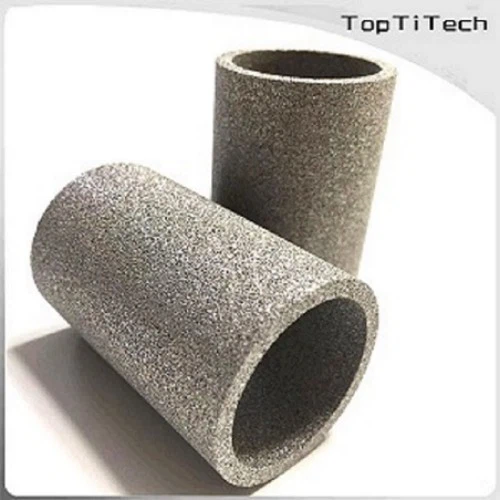

Sintered Stainless Steel Porous Metal Filter Tube is made by irregularly shaped stainless Steel powder, Generally AISI 316L.In the production process of stainless steel sintered filter, the powder is compressed into a mold to form a strong brittle component, and then undergoes a high-temperature sintering process to form a porous filter tube with high temperature resistance, high corrosion resistance, and high mechanical strength.

The pore size can be determined by the power that is chosen and the pressing force that is applied. The filters ultimate properties are influenced by the shape, size and distribution of the powder.

Sintered Stainless Steel Porous Metal Filter Tube has a particle chipping problem of the edge that may exhibit directly when the filtration accuracy at 70µm or even finer. Thankfully, our sintered metal tube enables us to avoid this phenomenon, by our advanced vacuum sintering equipment and professional production workers.

Furthermore, every sintered metal tube is tested strictly with bubble point test according to ISO 4003 and air permeability test according to ISO 4022, to ensure high quality producing and satisfy each customer.

Products Parameters

Material	SS 316L /AISI 316L
Outer diameter	Φ4-500mm
Length	50-1200mm (more than 1200mm can be welded)
Filtration accuracy	0.22-100um
Porosity	35%-60%
Wall thickness	1-5mm

Products Features

High temperature resistance

Resistant to high temperatures up to 600℃ during normal use.

Corrosion resistance, oxidation resistance

It can be used in nitric acid, sulfuric acid, dilute hydrochloric acid (5%), acetic acid, liquid hydrogen, liquid nitrogen environment.

Sintered Stainless Steel Porous Metal Filter Tube2

Good air permeability

It is easy to back blow cleaning and can be used repeatedly online regeneration.

Sintered Stainless Steel Porous Metal Filter Tube3

Good molding process

The filter is according to customer drawings for processing a molding.

Products Applications

According to its physical and structural characteristics, stainless steel sintered porous materials are mostly used in the fields of noise elimination, filtration and separation, fluid distribution, flow-limiting, capillary core and so on.

1. The chemical raw material production process in addition to impurity filtration, material decarburization filtration, and fine filtration.

2. Ultrafiltration, RO, EDI system security filtration in water treatment.

3. The food and beverage industry finished product clarification filtration.

4. Filtration and recovery of the precious metal catalyst in the petrochemical industry.

5. Precision filtration of liquid raw materials, products and pharmaceutical intermediates in the chemical industry.

6. Reverse osmosis security filtration in the field of water injection filtration.

7. Gas purification of steam, compressed air deoiling purification.

8. Medium purification and flow limitation for pneumatic components, lubricants, fuels, and hydraulic pressure systems.

9. Chemical dye industry of high - temperature decarburization.
