Product Introduction

Material: standard material SUS316L Stainless Steel

Production Name: Stainless Steel Sintered Wire Mesh Plate

Size: The standard size is 500X1000MM, 600X1200MM,

Shape: Round, Square, or another shape

The size within the above range can be customized according to user requirements.

Layers: 3 layers or 5 layers

A protective layer, filter layer, separation layer, reinforcing layer, and reinforcing layer as below:

5lays-sintered-mesh

Introduction of sintered mesh:

Sintered mesh, also known as multi-layer sintered metal mesh, is an innovative filter material characterized by its mechanical strength and rigid structure. It is produced by laminating and vacuum sintering multiple layers of metal woven wire mesh. The interlaced arrangement of wire mesh layers creates a uniform and optimal filtering structure. This advanced material addresses the limitations of ordinary wire mesh, such as low strength, poor rigidity, and unstable mesh shape. Additionally, it allows for adjustable pore sizes, ensuring a well-matched combination of filtration accuracy, filtration resistance, mechanical strength, wear resistance, heat resistance, and processability. Overall, sintered mesh outperforms other types of filter materials, including sintered metal powder, ceramics, fibers, filter cloth, and filter paper.

Sintered mesh structure

Sintered mesh typically consists of a five-layer structure, encompassing four main components: the protective layer, filter layer, separation layer, and support layer. This filter material offers uniform and stable filtration accuracy, high strength, rigidity, and excellent compressive strength, making it ideal for applications that require consistent filtration particle sizes. Its surface filtration mechanism and smooth mesh pores enable outstanding backwash regeneration performance, allowing for long-term reuse. Notably, sintered mesh excels in continuous and automated operation processes, surpassing the capabilities of other filter materials. It is easy to shape, process, and weld, facilitating the manufacturing of various filter element forms, such as round, cylindrical, conical, corrugated, and more.

wire mesh 5 layers

Applications

1. Used as dispersion cooling material in a high-temperature environment

2. Used for gas distribution, liquid bed orifice plate material

3. Used for high-precision, high-reliability high-temperature filter materials

4. For a high-pressure backwash oil filter

Characteristic:

1. Wide range of filtration accuracy

Reliable filtration performance from 1 micron to 100 microns.

2. Stable filtration accuracy

Because there are two layers of wire mesh for protection, and the sintering process of diffusion and solidification, make sure the mesh of the filter layer is not easy to deform.

3. Excellent Strength
Thanks to the reinforcement provided by the fourth and fifth layers, the sintered mesh exhibits remarkable resistance to high pressures and mechanical strength.

4. Convenient Cleaning
The surface filter material used in the sintered mesh enables effortless cleaning, making it particularly suitable for backwashing processes.

5. High Temperature Resistance
With the ability to withstand temperatures up to 480°C, the sintered mesh demonstrates exceptional high-temperature resistance.

6. Corrosion Resistance
Utilizing SUS316L material, the sintered mesh boasts exceptional corrosion resistance, ensuring its longevity and reliability.

7. Easy Processing
The sintered mesh is easily processed through cutting, bending, stamping, stretching, welding, and other techniques, providing versatility in its application and customization capabilities.

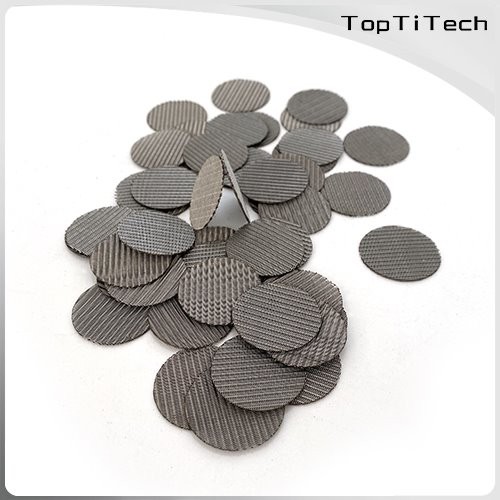

Details of Stainless Steel Sintered Wire Mesh Plate
