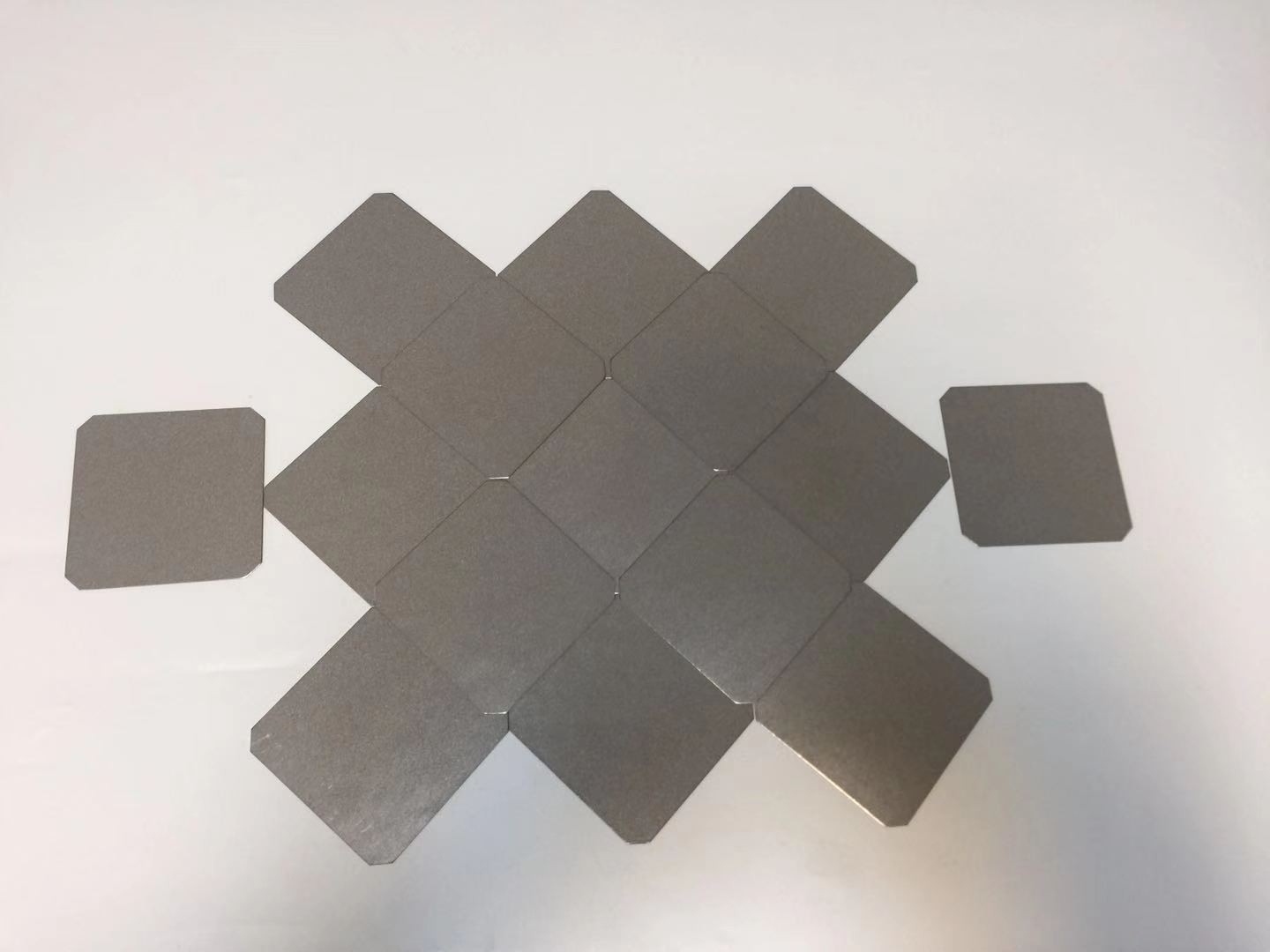

Sintered Porous Titanium Plate For Water treatment

Sintered Titanium Porous Plate for Water is a kind of porous material with high-quality spherical and high-purity titanium powder as raw material and it is made rigid by forming and sintering at high temperatures.

Sintered Titanium Porous Plate for Water has the characteristics of low density, high specific strength, good corrosion resistance, and good biocompatibility.

titanium porous plate

sintered titanium filter plate

microporous filter element

Parameters:

Brand: TopTiTech

Origin: Baoji, China

Materials: pure titanium powder

Filter rating: 0.22um-100um

Porosity: 25-45%

Penetrability: 3-800M³/M²hKPa

Working pressure: 2.5MPa

Working temperature: ≦300℃

Shape: Round disc、sheet、tube、round bar、cap

Specific surface area: 10-40cm²/cm³

Features：

1. High temperature and pressure resistance, high flow rate.

2. Good durability for most corrosive fluids.

3. Good air permeability and uniform pore distribution.

4. Stable shape, high strength of components.

5. High mechanical resistance.

6. Stable filtration accuracy even after multiple washings.

7. Backwashing support with low manual maintenance and cost.

Titanium-sintered porous materials are mostly used for filtering materials、electrodes、heat

transfer materials、catalyst carrier materials、noise cancelling materials according to their

physical and structural properties.

1. Decarburization filtration of pharmaceutical liquids.

2. Electrolytic gas industry precision filtration, gas distribution.

3. The medical industry makes biological implants.

4. Water treatment industry odor sterilization filtration and ozone aeration.

5. Clarification and filtration in food and beverage processing.

6. Prefiltration of reverse osmosis system for the electronics industry.

7. Terminal filtration of petroleum products in the petrochemical industry and filtration of

8. Carbonic alkali liquid in the chemical industry.

9. High-pressure air filtration in the aerospace industry.

10. Filtration and recovery of the precious metal catalysts in fine chemical industry.

11. The electrode matrix of a fuel cell.

12. Catalyst carrier in gas and liquid catalytic reactions.

What is the sintering process?

It is the process of fusing particles into a single solid by using heat and pressure for mixing without directly melting the material.

Some of the particles known to be sintered together are ceramics, metals, plastics, and some other materials.

This process is very important in producing discrete particles as a unit.

You can use it to make sintered metal filters.

The high-temperature heating of the compaction contacts causes the constituent materials to fuse together as the materials eventually become wet.

The temperature of the furnace, the temperature of the atmosphere, and the temperature of the contacts are all in the heat and are the main elements of the process.
