The multi-layer metal sintered mesh filter element is made of metal meshes with different wire diameters and meshes sorted in a certain order and sintered at high temperature. It has higher strength than stainless steel fiber felt, better permeability than metal powder products, uniform pore size distribution, good permeability, high strength, strong corrosion resistance, high temperature resistance, weldable, renewable, long life, easy to clean and not easy to break.

Multi-layer metal sintered mesh filter elements are widely used in the filtration of high-temperature and high-pressure media (liquid-solid separation, gas-solid separation) in machinery ships, petroleum, chemical industry, power plants, fuel, pharmaceuticals, food and other industries, such as oil sand separation in oil fields ; high temperature gas dust removal; beverage filtration; oil filtration and water treatment, etc.

Sintered wire mesh plate

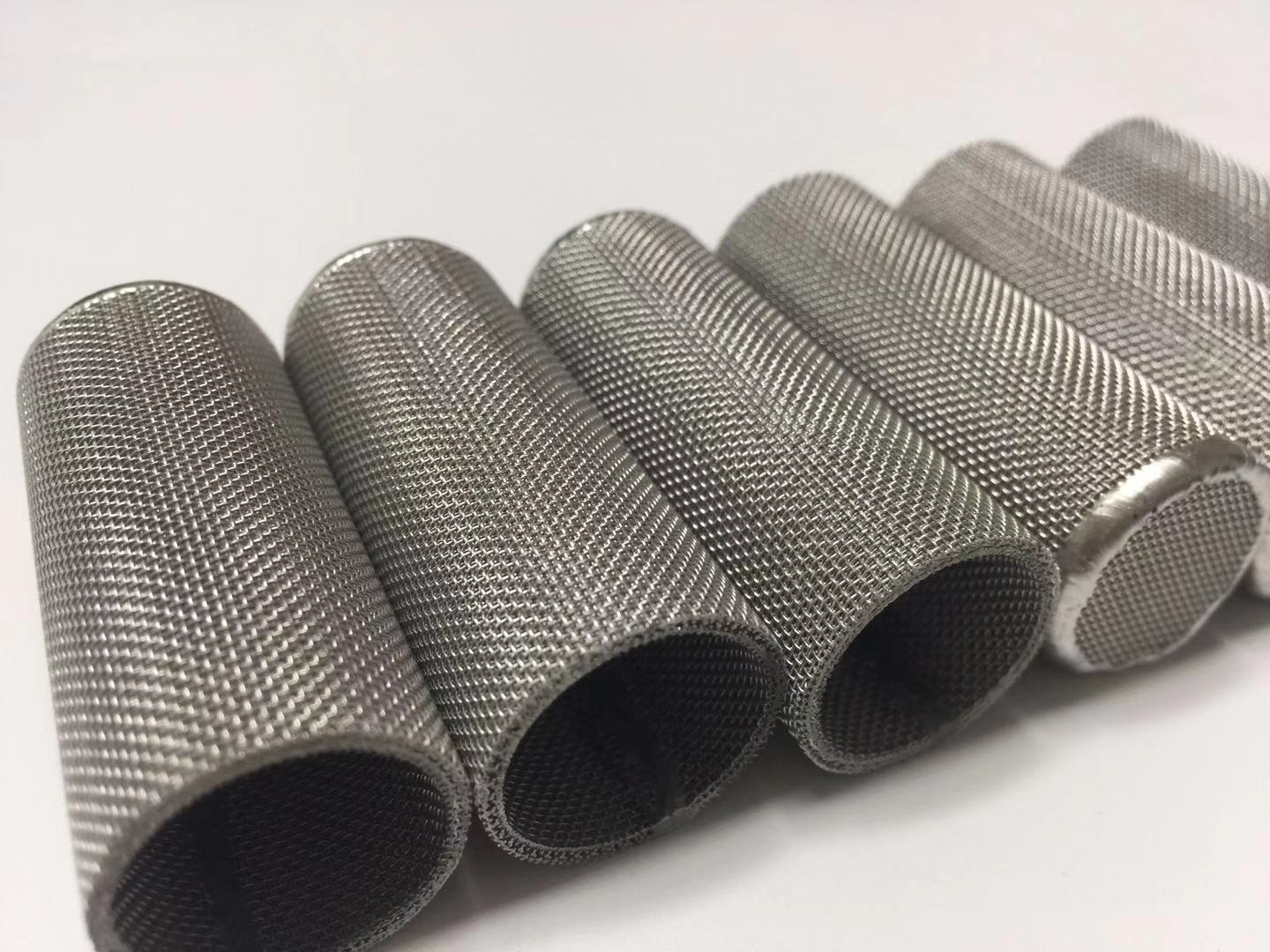

SUS wire filter tube

Products Parameters

Material	stainless steel 304 or 316L
Filtration accuracy	2um-300um
Size	1000mmx500mm, 1200mmx600mm, 1000mmx1000mm (customizable)
Classification	single-layer, double-layer, three-layer, five-layer, seven-layer and multi-layer metal
Note	special specifications can be customized according to the requirements of the buyer

Products Structure

20230421101837

The schematic overview of sintered mesh(standard five layers)

20230421104728

The frontview of sintered mesh

Products Features

►High strength and durability: This feature is achieved through high temperature sintering, which is a process of sintering material through heat and pressure without melting it. The high temperature sintering process enables the material to have a high level of strength and durability, making it resistant to wear and tear.

►Anti-corrosion and heat resistance: This material can withstand high temperatures up to 600°C and is resistant to corrosion, which makes it ideal for use in harsh environments.

►Steady filter rating: This material has a steady filter rating that ranges from 2 micron to 300 microns. This means that it can effectively filter out particles of different sizes, making it suitable for a wide range of applications.

►Filter mesh not easy to deform: The filter mesh is protected by two layers, which makes it difficult to deform. This feature ensures that the filter mesh maintains its shape and continues to function effectively even under high pressure or high viscosity environments.

►Versatile in manufacturing processes: This material can be cut, bent, punched, stretched, and welded, making it versatile in manufacturing processes. It can be easily customized to fit different shapes and sizes, making it suitable for a wide range of applications.

Products Application aspects and industries

Metal meshes of various wire sizes are sorted in a specific sequence, sintered at high temperatures, and used to create the multi-layer metal sintered mesh filter element. It is stronger than stainless steel fiber felt, more permeable than metal powder goods, evenly distributed pore size, strong corrosion resistance, high temperature resistance, weldable, renewable, long-lasting, simple to maintain, and difficult to break.

Multi-layer metal sintered mesh filter elements have many applications in the filtration of high-temperature and high-pressure media (liquid-solid separation, gas-solid separation), including oil sand separation in oil fields, high temperature gas dust removal, beverage filtration, oil filtration, and water treatment.
