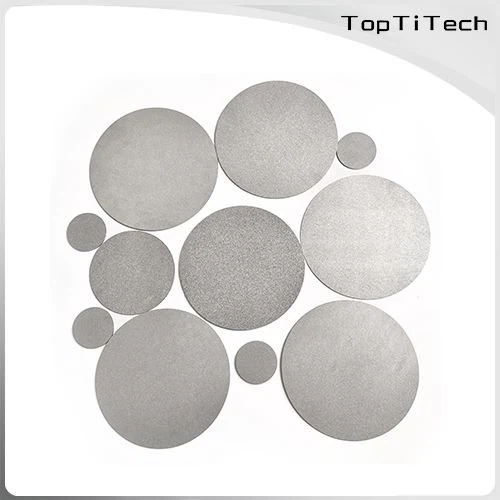

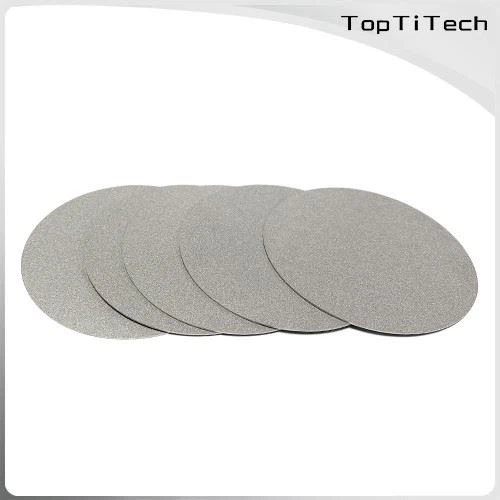

Titanium Powder Sintered Plates Gas Diffusion is a type of material that is produced using powder metallurgy technology. The process involves mixing metal or alloy powder with spherical and irregular shapes, and then pressing and sintering the mixture to create new depth separation and fine filter elements. As a result of this process, Titanium Powder Sintered Plates exhibit unique properties that make them ideal for a variety of applications.

Titanium Powder Sintered Plates Gas Diffusion is one such application. This material is made from Titanium Powder Sintered Plates and has exceptional temperature resistance properties. It can withstand high temperatures as well as low temperatures, making it suitable for use in a wide range of environments. In addition to its temperature resistance, Sintered Porous Titanium also has excellent corrosion resistance, making it ideal for use in harsh or corrosive environments.

Another advantage of Titanium Powder Sintered Plates Gas Diffusion is their high strength-to-weight ratio. This makes them a popular choice for applications where strength and durability are important, but weight is a concern. They are also highly porous, which allows for the flow of fluids and gases through the material. This property makes them ideal for use in filtration systems and other applications where fluid flow is important.

Overall, Titanium Powder Sintered Plates Gas Diffusion is a versatile material that offers a unique combination of properties that make them ideal for a wide range of applications. From filtration systems to high-temperature environments, these plates are a reliable and effective choice for many different industries.

Parameter

Filtration precision:0.2um—100um
Porosity:30-40%
Operating temperature:≤300℃
Shape: round, square, special-shaped
Dia:5-300mm
Length:30-1000mm
Thickness:≥1mm

Feature

1. A uniform structure, restricted distribution of pore sizes, and good separation effectiveness.
Low filtration resistance, high permeability, and high porosity.
3. High-temperature resistance; often usable at temperatures under 280 degrees.
4. It has strong acid and alkali corrosion resistance, antioxidant capabilities, and good chemical stability.
5. No particulate peeling; no secondary contamination of raw liquor; complies with pharmaceutical GMP and food hygiene standards.
6. It is simple to use, has high mechanical properties, and can filter by suction as well as pressure.
7. Small area, high flow, low-pressure difference.
8. It is highly effective against germs and does not interact with them.
9. The molding procedure is effective. Without welding, the entire length may be up to 1000 mm.
10. On-demand regeneration, simple cleanup, and a long lifespan (often many times longer than the membrane filter element)

Application

1. High-pressure filter medium; oilfield oil sands separation;
2. Machinery, ships, fuel, lubricating oil, hydraulic start oil filter;
3. Chemical industry, chemical plants process;
4. High-temperature gas dust removal; filter food; medical filter;
5. Water treatment and distribution, gas distribution system, and the fluidized bed.

Production Process

1. Powder wash→Drying→ Through the rolling mill pressure molding→Into the vacuum sintering furnace oxide

→Annealing leveling→Baiting→Package;

Porous Ti

Package and Shipment

Package:

We can pack it into a carton box with foams inside or a Plywood box according to quantity and your request.

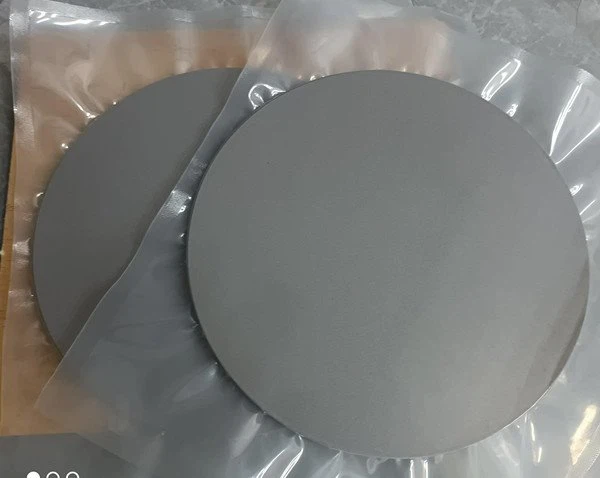

Porous titanium disk01

package004 (2)

Shipping Way:

DHL, FedEx, UPS, and EMS are available for your options,
We will also help you to find the cheapest shipping way to your country,save the charge for you.

ship

FAQ

Q1.What is the nature of the company?

A: our company has its own factory, and we can export the production.

Q2. What is the MOQ for one order of your company?

A: Our company's MOQ is 150 kg for each type of production.

Q3.Can I get a sample before making one order for production?

A: The sample is free, but the shipping cost of the sample is paid by the customer.

Q4.How long is the delivery time for the order?

A: We will end the production within 15-25 days after receiving the deposit.

Q5.What payment method does your company support?

A: We can accept T/T or L/C, you can choose one way that is most effective for you.

Our product advantages

The products are mainly used in environmental protection industries such as sewage treatment, gas purification, industrial wastewater purification, etc.,

providing accessories for major environmental protection enterprises, escorting the environmental protection cause, and contributing to the green of the

motherland. Our technical advantage The newly developed hydrogen energy series products, hydrogen energy manufacturing, hydrogen energy vehicles,

etc., are deeply cultivated in the emerging technology industry and become a technology-based enterprise with a sense of social responsibility.

Our service advantages Focusing on breathable materials for more than ten years, it has provided product optimization and alternative solutions for

countless environmental protection technology companies.

About Us:

TopTi Tech is one factory which has more than 11 years experiences on porous titanium materials,it has QC team,Sales team and Research and Development team,and our company has passed the ISO 9001-2015 certification.Now we have gained good cooperation with all the customers from Korea, Iran, Europe, America and so many different countries. and also we won good comments and suggestion, feedback from our users.

We are a typical China supplier.We are professionally exporting under the standards of ASTM, GB, AMS, as well as nonstandard porous titanium materials.

Our mainly products are: Titanium Sintered Filter Sheet,Titanium Fiber Felt,Sintering Titanium Powder Filter,Titanium Foil, Titanium Anode,Titanium Aeration Head,Porous Sintered Titanium Filter Tube,Stainless Steel Powder Sintered Filter Tube,Stainless Steel Sintered Wire Mesh and so on.

All the production in Topti Tech have been widely used in different industries:

Petrochemical industry,

Aviation and Aerospace industry,

Medical industry,Food industry,etc.

We appreciate your interest on our company very much and hope that our website will be helpful and informative to you. If you need some more information about products, please feel free to contact our sales department.

Kindly you please contact with me, If you're interested in our products. you can check it: www.toptitech.com.

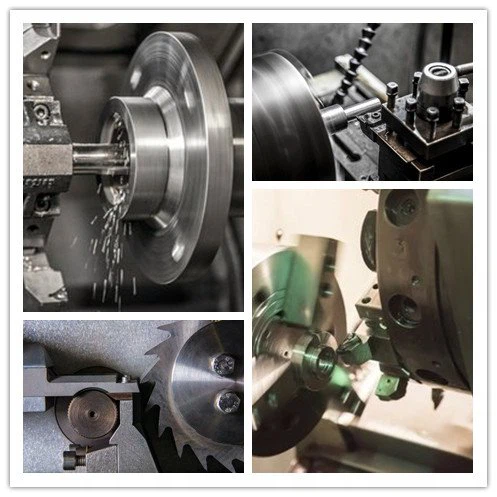

Machine1
