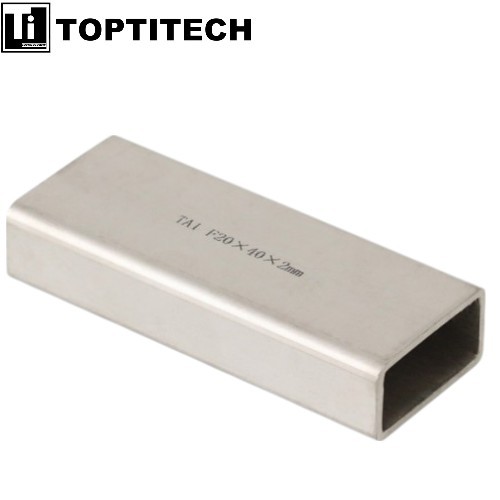

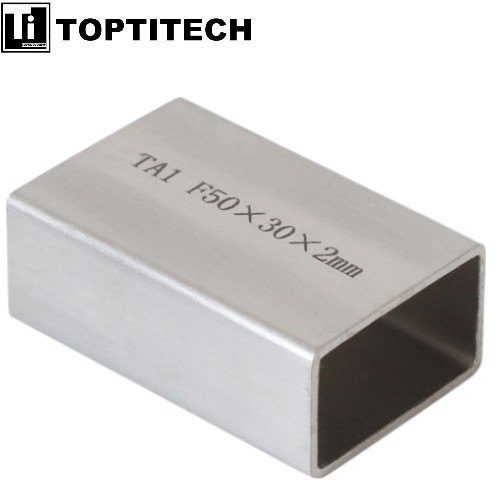

Titanium rectangular profiles, with their geometric structural advantages, demonstrate unique design flexibility and load-bearing capacity in the chemical reactor support system. The rectangular cross-section has high rigidity, which can effectively disperse multi-directional mechanical loads and ensure the structural safety of the reactor during long-term operation.

This profile has precise dimensional control and good processing adaptability. Combined with the corrosion resistance and fatigue resistance of titanium, it significantly reduces the weight of the support system, improves the durability and safety of the overall structure, and Complies with the rigorous demands of intensive chemical reactor operation.

Products Specifications

Material: Gr.1, Gr.2, Gr.5 (Ti-6Al-4V)

Standard lengths: 3000mm, 6000mm (custom lengths available)

Surface finishes: Pickled, polished, sandblasted

Width (mm)	20	20	20	20	30	30	30	40	40	50	50
Height (mm)	25	30	40	50	40	50	60	60	80	60	70
Thickness(mm)	1.0 2.0 3.0	1.0, 2.0, 3.0	1.0, 2.0, 3.0, 4.0	1.0, 2.0, 3.0, 4.0	1.0, 2.0, 3.0, 4.0	1.0, 2.0, 3.0, 4.0	1.0, 2.0, 3.0, 4.0	1.0, 2.0, 3.0, 4.0	2.0, 3.0, 4.0, 5.0	2.0, 3.0, 4.0, 5.0	3.0, 4.0, 5.0

Products Features

Stable Shape and Structural Efficiency

Rectangular profiles offer greater resistance to bending and compression than round or irregular sections, making them ideal for unidirectional and bidirectional load-bearing structures in reactor supports.

Flat Contact Surfaces for Easy Integration

Their flat sides simplify welding or mechanical connections with plates, flanges, or brackets, enhancing joint strength while streamlining on-site assembly.

Compatible with Modular Layouts

The uniform cross-section supports standardized and modular design, enabling efficient layout, quick installation, and easier maintenance in large-scale systems.

Maximized Space Utilization

Compared to round tubes, rectangular profiles fit more closely to equipment contours, improving space efficiency-especially valuable in confined installation environments.
