High-temperature vacuum sintering and isostatic cool pressing are used to create sintered porous metal filters. The metal powder can be used to regulate the pores' micron size and dispersion. They are the best option for process filtration applications that call for high strength and exceptional corrosion and temperature resistance.

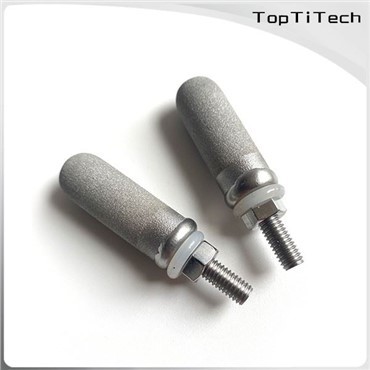

sintered titanium filter tube

porous titanium filter element

Low density, high specific strength, strong corrosion resistance, and good biocompatibility are all attributes of titanium-sintered porous materials.

Parameters

Name: 1 Micron Sintered Metal Porous Filter Tube

Brand: TopTiTech

Origin: Baoji, China

Material: Titanium powder

Filter Rating:0.5um-50um

Porosity:30-45%

Penetrability:3-800M³/M²hKPa

Working pressure:2.0MPa

Operating temperature:300℃

Shape:Round disc、sheet、tube、roundbar、cap

Specific surface area:10-40cm²/cm³

Properties

1. Pore stability, uniformity of diameter, and good separation effectiveness.

2. High permeability, low filtration resistance, and high porosity.

3. Excellent chemical stability, resistance to corrosion from acids and alkalis, and resistance to oxidation

4. Morphological stability, no particle shedding, and compliance with pharmaceutical GMP and food hygiene standards.

5. Strong mechanical characteristics, minimal differential pressure, and high flow

6. Has potent antimicrobial properties and is inert to bacteria.

7. Online regeneration, simple cleanup, and extended service life.

8. Excellent biocompatibility; widely applicable in the pharmaceutical, food, and medical industries.

9. Outstanding electromagnetic shielding capabilities.

10. Good shock absorption and dampening.

Processing steps

Powder sieving→stirring→molding→sintering→surface treatment→inspection→finished products

product-699-684

Applications

According to their physical and structural characteristics, titanium-sintered porous materials are mostly used for filtering materials, electrodes, heat transfer materials, catalyst carrier materials, and noise-canceling materials.

1) Decarburization filtration of pharmaceutical liquids.

2) Electrolytic gas industry precision filtration, and gas distribution.

3) The medical industry makes biological implants.

4) Water treatment industry odor sterilization filtration and ozone aeration.

5) Clarification and filtration in food and beverage processing.

6) Prefiltration of reverse osmosis system for the electronics industry.

7) Terminal filtration of petroleum products in the petrochemical industry and filtration of carbonic alkali liquid in the chemical industry.

8) High-pressure air filtration in the aerospace industry.

9) Filtration and recovery of the precious metal catalysts in the fine chemical industry.

10) The electrode matrix of a fuel cell.

11) Catalyst carrier in gas and liquid catalytic reactions.

About us

TopTiTech is located in the east area of the Baoji High-tech Industrial Development Zone, which is well-known as “Titanium Valley” in China. It is a technology-based private enterprise specializing in the production, research and development, and sales of microporous titanium, stainless steel filter equipment, sintered metal filter materials, and plate filter elements. It is mainly used in petroleum, chemical industry, metallurgy, aviation, electronics, atomic energy, electric power, nuclear industry, solid-liquid, gas-solid, gas-liquid separation and purification in the fields of pharmaceuticals, environmental protection, refractory materials, and fire-fighting equipment. Our company has successfully applied titanium foam board to oxygenator (artificial lung) and won a high reputation. It is a substitute for the traditional filter paper, carbon rod, diatomite, polyethylene filter element, and various imported industrial and mining filter elements.

We can provide the following services:

1. Material selection consultation, performance testing, and customized production and maintenance of sintered metal filter materials.

2. Design, manufacture, and budget for various filtration and separation system equipment.

3. Research and development of multi-functional filter materials.

We can provide the following products:

1. Powder metallurgy (stainless steel, titanium, copper, iron, aluminum, tungsten, molybdenum, superalloy, nickel, and Monel, etc.) sintered porous and microporous filter materials (filter tube, filter disc, filter ring, filter element, filter cone, plates, strips, etc.) series.

2. Three-layer, five-layer, seven-layer, and multi-layer metal sintered screen series. Can provide 800*1200mm composite screen.

3. Metal fiber sintered porous, microporous filter material and element series. Can provide 500*1000mm metal felt.

4. Design and manufacture of filters, filter presses, multi-filtration equipment, and gas-liquid, gas-solid, liquid-solid separation, and gas distribution systems.
