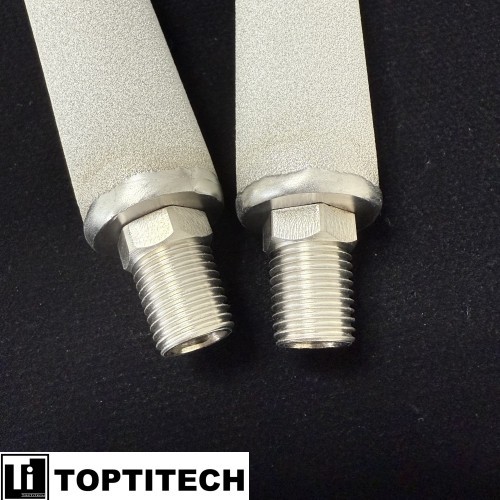

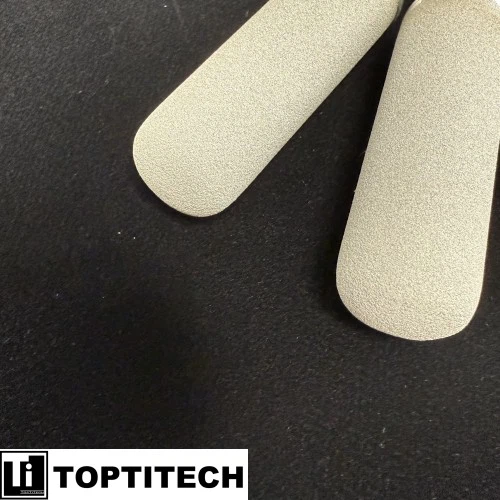

20 Microns Stainless Steel Powder Sintered Filter For Lubricating Oil System

The stainless steel powder sintered filter is a high-performance filtration component specifically engineered for lubricating oil systems in various industrial equipment. Crafted from high-quality 316L stainless steel through advanced powder sintering technology, this filter features a uniform and porous structure that ensures efficient and stable filtration of lubricating oil, effectively protecting key mechanical components from wear, damage, and failure caused by impurities.

In lubricating oil systems, the primary function of this filter is to remove solid contaminants such as metal particles, dust, and wear debris (with particle sizes ≥20μm) from the lubricating oil, ensuring the oil remains clean and maintains its lubricating, cooling, and protective properties. The 20μm filtration precision is perfectly tailored for most industrial lubrication scenarios-it can effectively intercept harmful fine particles that would otherwise cause abrasive wear on bearings, gears, cylinders, and other precision components, while avoiding excessive pressure drop that might affect the oil circulation efficiency of the system.

Material: 316L powder
Diameter: 25mm
Length: 75 mm
Fitting: ¼" Male NPT
Pore Size: 20 microns
Technical: Sintered

Products Features



- Precise Filtration Matching Lubrication Needs: 20μm filtration precision is perfectly tailored for lubricating oil purification-effectively intercepts harmful metal particles, wear debris, and dust (≥20μm) that cause abrasive wear to bearings, gears, and hydraulic components, while avoiding excessive pressure drop to ensure smooth oil circulation and stable lubrication performance.

- Easy Installation & Leak-Proof Design: Featuring ¼"NPT external thread combined with a hexagonal outer structure, this stainless steel filter directly mounts into small-bore lubrication pipelines and equipment oil circuits. The hexagonal profile enables convenient wrench fastening without extra fittings, delivering a firm, leak-tight connection that remains stable even under the vibrating operating conditions of lubrication systems.

- Compact Size for Narrow Spaces: φ25*75mm small size is specially designed for lubricating oil systems of small and medium-sized equipment, easily installed in narrow spaces (such as gearbox oil circuits, hydraulic pump bypasses) where large filters cannot fit, without occupying extra installation space.



- Durable & Reusable for Cost Savings: Made of 316L stainless steel powder sintered material, it has excellent corrosion resistance and high-temperature resistance (adapts to -20℃~200℃ lubricating oil working temperature), no deformation or damage under long-term oil immersion; it can be cleaned (backwashing, ultrasonic cleaning) and reused, reducing filter replacement frequency and long-term maintenance costs of lubrication systems.

- Stable Filtration Performance: The uniform porous structure of powder sintering ensures consistent filtration efficiency, no particle leakage, and effectively maintains the cleanliness of lubricating oil, extending the service life of both the lubricating oil and the equipment's precision components (bearings, cylinders, valves).
