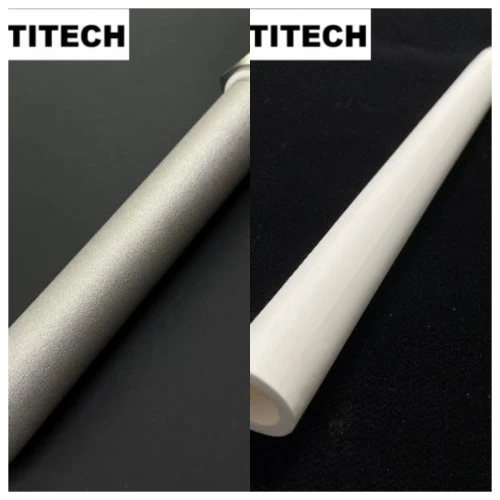

In the field of industrial filtration, the choice of filter element material directly determines separation efficiency, operating costs, and service life. The three most widely used sintered filter element types on the market today-ultra-high molecular weight polyethylene (PE) sintered filter elements, polytetrafluoroethylene (PTFE) sintered filter elements, and sintered metal powder filter elements-each offer distinct performance characteristics and application scenarios. This article provides a systematic comparison across four dimensions-material properties, filtration performance, resistance capability, and economic viability-to serve as a reference for engineering selection.
I. Material Properties of the Three Filter Element Types
PE Sintered Filter Elements
PE sintered filter elements are formed by sintering ultra-high molecular weight polyethylene (UHMW-PE) powder at high temperature. They are a typical representative of non-metallic sintered filter elements. Their standout feature is that the material is non-toxic and odorless, complying with GMP and FDA standards, making them suitable for food and pharmaceutical applications. PE material offers excellent corrosion resistance to most non-strongly oxidizing acids, alkalis, and organic solvents. However, the maximum continuous operating temperature generally does not exceed 80°C, with short-term tolerance to 130°C saturated steam (within 30 minutes).
In terms of filtration precision, PE sintered filter elements can achieve ratings as fine as 0.3 μm, with filtration efficiency exceeding 99.7% for particles above 0.3 μm. Porosity can reach 60% with uniform pore size distribution. They operate on a depth filtration mechanism-particles are captured within the pore channels rather than relying solely on surface interception.
PTFE Sintered Filter Elements
PTFE (polytetrafluoroethylene) sintered filter elements are produced by sintering pure PTFE resin under high temperature and pressure, often referred to as the "king of filter media." Their most significant advantage is an exceptionally broad chemical resistance range-capable of withstanding nearly all strong acids, strong alkalis, and organic solvents. PTFE filter elements can operate at temperatures up to 120–200°C and feature inherent hydrophobic properties, maintaining filtration efficiency even in humid gas environments.
In terms of filtration precision, PTFE membrane filter elements can achieve ratings as fine as 0.02 μm, and in gas filtration applications, even below 0.01 μm, giving them a decisive advantage in liquid and gas sterilizing filtration. However, it should be noted that many commercially available PTFE filter elements use polypropylene (PP) as the support layer and skeleton material, which to some extent limits the overall temperature resistance.
Sintered Metal Powder Filter Elements
Sintered metal powder filter elements are manufactured from metal powders such as stainless steel (304L, 316L), titanium, and nickel-based alloys through cold isostatic pressing followed by high-temperature vacuum sintering, without the addition of binders. Their core advantage lies in exceptional mechanical strength-capable of withstanding high differential pressure, high impact, and high vibration conditions, along with outstanding temperature resistance. 316L stainless steel filter elements can operate continuously at 400–500°C, while nickel-based alloys can reach 600–700°C.
Filtration precision covers a range of 0.5–200 μm, with pore structure precisely controllable by adjusting powder particle size and sintering parameters. Metal filter elements employ a combination of surface filtration and depth filtration mechanisms. The filter cake captured on the surface can be easily removed by backwashing, and filtration performance can be restored to over 90% after regeneration. The material selection for metal filter elements is extremely broad, including not only conventional stainless steel but also titanium, Monel, Hastelloy, and other special alloys, allowing flexible selection based on medium corrosivity.
II. Key Performance Comparison
For intuitive comparison, the following table provides both quantitative and qualitative comparisons of the three filter element types across seven critical dimensions:
| Comparison Dimension | PE Sintered Element | PTFE Sintered Element | Sintered Metal Powder Element |
|---|---|---|---|
| Maximum Continuous Operating Temperature | 80°C | 120–200°C | 400–700°C (depending on material) |
| Typical Filtration Rating | 0.3–100 μm | 0.02–5 μm | 0.5–200 μm |
| Chemical Corrosion Resistance | Resists non-strongly oxidizing acids, alkalis, organic solvents | Resists nearly all strong acids, alkalis, and organic solvents | 316L withstands pH 1–14 range; special alloys resist more aggressive corrosion |
| Mechanical Strength | Moderate; withstands 0.2–0.6 MPa differential pressure | Relatively low (requires PP support layer) | Excellent; withstands high differential pressure and impact loads |
| Regeneration Method | Backwashing + chemical soaking | Generally not recommended for regeneration (single-use) | Backwashing + ultrasonic + chemical cleaning |
| Regeneration Cycles | Multiple regenerations possible | Limited | Repeated regeneration; service life 5–10 years |
| Leachables Risk | Very low (FDA/GMP compliant) | Low, but support layer may present leachables | Zero leachables; suitable for ultra-high-purity applications |
III. Selection Recommendations
►1. Scenarios Where PE Sintered Filter Elements Are Preferred
Water treatment and environmental engineering: municipal wastewater, industrial wastewater, reclaimed water reuse-applications with high flow rates and low temperatures
Pharmaceutical and food industries: drug solution clarification, oral liquid filtration, wine polishing, edible oil filtration
Fine chemical liquid filtration: non-strongly oxidizing acid/alkali solutions, electroplating solutions, solid-liquid separation of chemical intermediates
Gas-solid separation in low-temperature conditions: compressed air dust removal, powder recovery
Selection note: PE filter elements offer good cost-effectiveness and strong regeneration capability, but it is essential to ensure operating temperature does not exceed 80°C, and they are not suitable for strongly oxidizing media.
►2. Scenarios Where PTFE Sintered Filter Elements Are Preferred
Highly corrosive media filtration: concentrated acids, concentrated alkalis, strong oxidizers, corrosive organic solvents
Gas sterilization and ultra-high-purity filtration: pharmaceutical industry breather vents, fermenter air inlets, compressed air sterilization requiring 0.01–0.2 μm ratings
Terminal filtration of solvents and media: particle and sterilizing filtration of esters, alcohols, and other organic solvents
Humid gas environments: leveraging PTFE's hydrophobic characteristics to maintain efficiency under moist conditions
Selection note: PTFE filter elements offer the broadest chemical compatibility, but mechanical strength is limited and cost is relatively high. If selecting products with PP support layers, pay attention to the overall temperature limitation.
►3. Scenarios Where Sintered Metal Powder Filter Elements Are Preferred
High-temperature gas or liquid filtration: temperatures exceeding 200°C-the only viable option
High-pressure systems: gas or liquid filtration at pressures >1 MPa
Catalyst recovery and chemical processes: catalyst separation and recovery in petrochemical and fine chemical applications
High-impact, high-vibration conditions: compressor discharge ports, pulsed airflow, and other alternating load environments
Semiconductor and ultra-high-purity applications: requiring zero leachables and resistance to high-temperature baking (>200°C) for gas filtration
Flame arrestor and silencer applications: leveraging the special functions of porous metal structures
Selection note: Metal filter elements have the highest initial cost but the longest service life and the lowest total cost of ownership overall. Material selection should be based on medium corrosivity-316L for conventional conditions, titanium or Hastelloy for strongly corrosive environments.
IV. Selection Decision Flowchart
The following step-by-step approach is recommended for filter element selection:
Step 1: Determine temperature conditions
Long-term >200°C → Only sintered metal powder filter elements are viable
80–200°C → PTFE or sintered metal powder are viable (PE is not)
<80°C → All three types can be considered
Step 2: Assess medium corrosivity
Strong oxidizing acids, strong alkalis, corrosive solvents → PTFE or special alloy metal filter elements
Non-strongly oxidizing acids/alkalis, common organic solvents → PE or metal filter elements both viable
Neutral aqueous solutions → All three types are viable
Step 3: Define filtration precision requirements
<0.2 μm sterilizing grade → PTFE membrane filter elements (preferred) or high-precision metal filter elements
0.3–5 μm fine filtration → PE or metal filter elements both viable
5 μm coarse filtration → PE or metal filter elements; PE is more cost-effective
Step 4: Consider system pressure and impact
High pressure (>1 MPa) or high-frequency pulsing → Sintered metal powder filter elements are mandatory
Low-pressure stable conditions → PE or PTFE both viable
Step 5: Comprehensive economic evaluation
Limited initial investment with short replacement cycles → PE offers superior cost-performance
Pursuing long-term stability with fewer replacement frequencies → Sintered metal powder filter elements offer the best TCO (total cost of ownership)
Strongly corrosive special conditions → PTFE or specialty metal filter elements
conclusion
The comparative analysis and selection recommendations above are based on the typical performance of the three filter element types. In actual selection, it is advisable to combine specific operating parameters (temperature, pressure, pH value, impurity
