The Porous Titanium Rod Filter derives its name from the titanium rod utilized in the internal filter component. The filter housing is constructed as a cylindrical structure, and it is made from high-quality stainless steel (304/316L) or high-purity titanium powder GR1. The inner and outer surfaces are polished to a mirror finish, ensuring a seamless design. This product complies with the GMP certification standard.

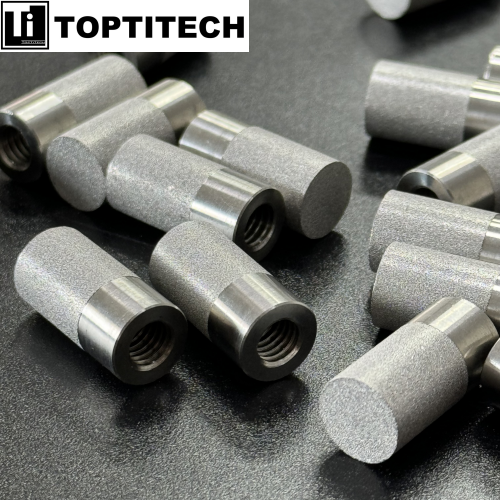

The titanium rod filter element is sintered from titanium powder, providing several advantages such as high temperature resistance, renewability, non-toxicity, absence of particle shedding, corrosion resistance, high mechanical strength, and long lifespan.
In various industries including pharmaceuticals, chemicals, and beverages, the titanium rod filters are commonly employed for solid-liquid separation. They serve the purpose of coarse filtration and intermediate filtration, with a particular emphasis on decarbonization filtration in medium and large infusion and injection production lines within the pharmaceutical industry.
Features:
1. The stainless steel titanium rod filter consists of a titanium rod sintered filter element enclosed within a stainless steel outer cylinder. The filter structure is designed in a scientific and diverse manner, accommodating single-core or multi-core filter elements. The filter cylinder is connected using quick-installation clamps or quick-opening bolts, facilitating easy loading and unloading of filter elements for convenient cleaning. The filter exhibits excellent airtightness, possesses a compact structure, and has a long service life, meeting various filtration requirements. The inner surface of the filter is mirror-polished (roughness Ra≤0.28μm), without any unhygienic dead corners, and adheres to the "GMP" regulations.
2. The titanium rod filter element offers high filtration precision and is available in various accuracies ranging from 0.45um to 100um, accommodating different filtration requirements of customers' products. In decarbonization filtration, a 0.45um filter element is typically employed to achieve complete removal.
3. The titanium rod filter is resistant to high temperatures and occupies a minimal space. Its size can be customized according to the specific requirements of customers.
Product Parameters provided by Toptitech:
Product Name: Porous Titanium Rod Filter
Material: High-purity titanium powder
Grade: GR1
1. Length options for the titanium rod filter element: 10 inches, 20 inches, 30 inches, 40 inches, etc.
2. Filter element material: Metal titanium (Ti)
3. Filter element diameter: Customizable
4. Filter apertures available: 0.45um, 1um, 3um, 5um, 10um, 30um, 50um, 100um
5. Maximum working temperature of the filter element: ≤300℃
Customers can select the appropriate filter element based on their specific requirements.
Selection Reference:
- Flow rate of the filtered liquid (or gas)
- Temperature of the filter material
- Operational stress conditions
- Viscosity of the filtered material
