sintered stainless steel powder filter
The charcoal used in pharmaceutical factories is generally 767 injection charcoal or 737 medicinal
charcoal, and the particle size is generally between 70-320 mesh, that is, 80% is above 10um, so the
filter accuracy is 5um. Add a level of 1um as a guarantee. In this way, the filter element can be graded
to intercept carbon particles of different particle sizes, improve the flow rate, prolong the cleaning
cycle, and increase the service life of the filter element. In order to ensure the life of the terminal filter
element, a 0.45um filter element should be used for coarse filtration after dilution. Because it is pre-
filtered, a polypropylene filter element can be used, which can reduce the cost. The terminal filtration
uses a polyethersulfone pleated filter element with an absolute accuracy of 0.22um to achieve the
purpose of complete sterilization. These two kinds of filters can be made into non-residue filters
according to the requirements of your factory. After dilution, the liquid medicine is 40,000-50,000 ml,
and the sterilizing filter adopts 3-core non-residual pleated filter element. Material 316L stainless steel.
Each batch of decarbonized liquid in the pharmaceutical factory is between 100,000-200,000 ml (about
200-300 kg), and it is required to be filtered within 20 minutes, that is, the flow rate is required to
reach 600-900Kg/h. It is recommended to use two-stage filtration first. Use a 3-core 3um titanium rod
without residue filter for the first stage, and use a 3-core 1um titanium rod without residue filter for
the second stage; if you use a first-level filter, the filter should choose a 5-core 1um titanium rod
without residue filter. The decarbonization filter is made of 304 stainless steel. According to the
requirements of the pharmaceutical factory, we recommend to use a two-stage titanium rod without
residual liquid filter. The first stage uses a 3um titanium rod to intercept larger carbon particles, and
the second stage uses a 1um titanium rod. In this way, more than 99.5% of activated carbon particles
can be effectively intercepted through two-stage filtration.
TopTiTech is one brand that has more than 11 years of experience in porous titanium materials, it has
a QC team, a Sales team, and Research and Development team, and our company has passed the ISO
9001-2015 certification. We are a typical China supplier. We are professionally exporting under the
standards of ASTM, GB, and AMS, as well as nonstandard porous titanium materials. Now we have
gained close cooperation with clients from Korea, Iran, Europe, and America, and won good comments
and suggestions from our users.
titanium felt
titanium filter
stainless steel wire mesh

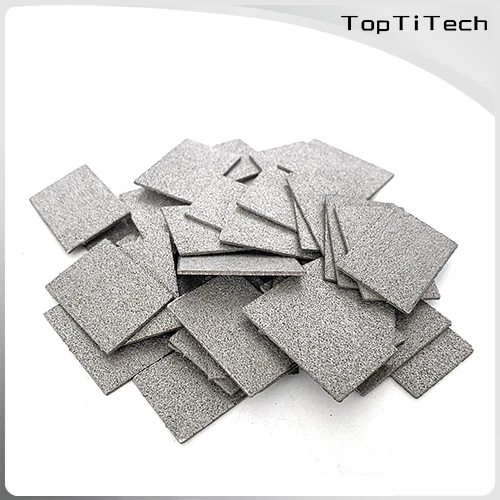

porous titanium sheet
Our main products are
Sintering Titanium Powder Filter,
Titanium Sintered Filter Sheet,
Titanium Fiber Felt, Titanium Foil,
Titanium Anode, Titanium Aeration Head,
Porous Sintered Titanium Filter Tube,
Stainless Steel Powder Sintered Filter Tube,
Stainless Steel Sintered Wire Mesh and so on.
Our production also has been widely used in the Petrochemical industry, Aviation and Aerospace
industry, Medical industry, Food industry, etc.
We appreciate your interest in our company very much and hope that our website will be helpful and
informative to you. If you need more information, please contact our sales department.
